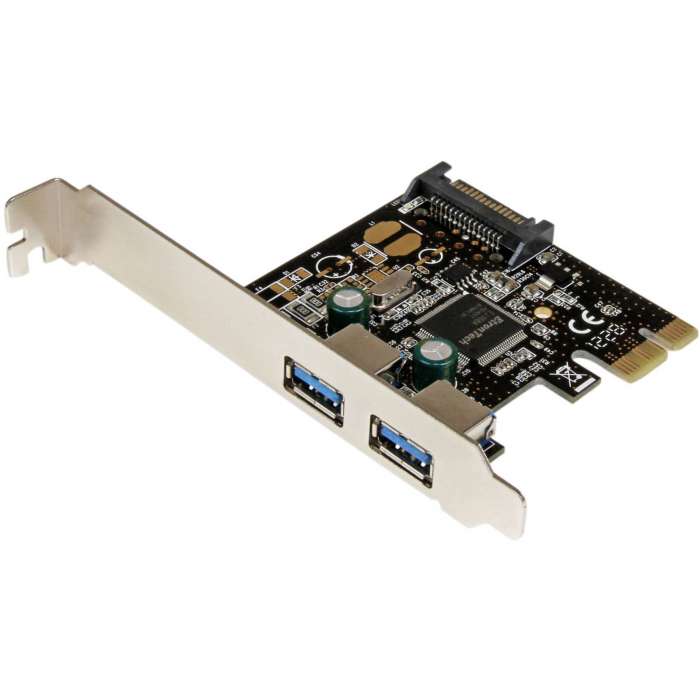

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power
Delivered in 2-4 business days
- Provides two external USB 3.2 Gen 1 connections
- Supports data rates up to 5 Gbps
- SATA power connector (required) provides up to 900mA per USB port
- Compliant with PCI Express 2.0 specifications
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Includes a Low Profile/half-height installation bracket
The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector. The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | China |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 4.7" |
| Host Interface | PCI Express x1 |
| Length | 3.1" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXUSB3S23 |
| Number of SATA Ports | 1 |
| Number of USB 3.2 Ports | 2 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 7 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows Server 2003 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Windows Vista |
| Operating System Supported | Windows XP |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Product Name | 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power |
| Product Type | USB Adapter |
| Total Number of USB Ports | 2 |
| UASP Support | No |
| Weight (Approximate) | 1.52 oz |
| Width | 0.8" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.3000 |
| UPC | 065030851633 |
| MPN | PEXUSB3S23 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
