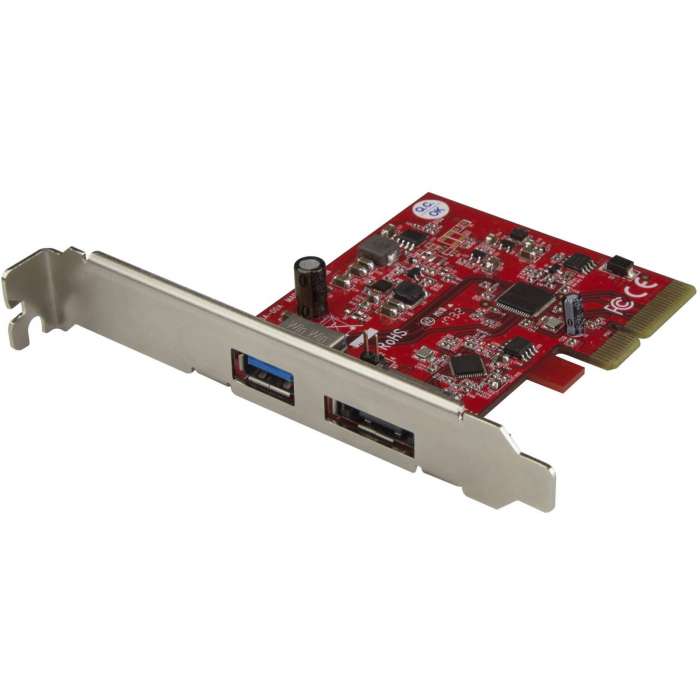

StarTech.com 2 Port USB 3.1 (10Gbps) + eSATA PCI Express Card - 1x USB-A + 1x eSATA - USB 3.1 PCIe Card & eSATA Card - USB 3.1 Expansion Card
Delivered in 2-4 business days
- Enhance your connectivity by adding one USB 3.1 Gen 2 and one eSATA port to your computer, through a single PCIe slot
- Supports USB 3.1 data rates up to 10Gbps
- Supports SATA I, II, and III up to 6Gbps
- PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
- Backward compatible with USB 3.0, USB 2.0 and USB 1.0/1.1 devices
- Includes a low-profile/half-height installation bracket
This combination PCI Express controller card lets you add both a USB 3.2 Gen 2 port and an eSATA port to your desktop PC, through a single PCIe slot. The versatile controller card offers a cost-effective way to add high-performance connectivity to your computer, with support for newer USB 3.2 devices as well as eSATA hard drives. At up to 10Gbps, the USB 3.2 PCIe card delivers the speed you need for seamless performance from your compatible devices. It's also backward compatible with previous versions of USB, so you can connect your existing USB 3.2 Gen 1 / 2.0 / 1.1 equipment. The controller card also connects your computer to an eSATA device, providing a hot-pluggable, high-speed storage solution for backing up or archiving data. With support for SATA I, II and III hard drives, and data transfer speeds of up to 6Gbps, the controller card offers reliable performance for your external SATA storage applications. For added versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers. The PEXUSB311A1E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 3.9" |
| Host Interface | PCI Express x4 |
| Length | 3.7" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXUSB311A1E |
| Number of eSATA/USB Combo Ports | 1 |
| Number of USB 3.2 Ports | 1 |
| Operating System Supported | Linux |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 7 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2019 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | Linux |
| Platform Supported | PC |
| Product Name | 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA |
| Product Type | USB/eSATA Combo Adapter |
| TAA Compliant | Yes |
| Total Number of USB Ports | 1 |
| UASP Support | Yes |
| Weight (Approximate) | 1.60 oz |
| Width | 3.1" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.2600 |
| UPC | 065030875059 |
| MPN | PEXUSB311A1E |
