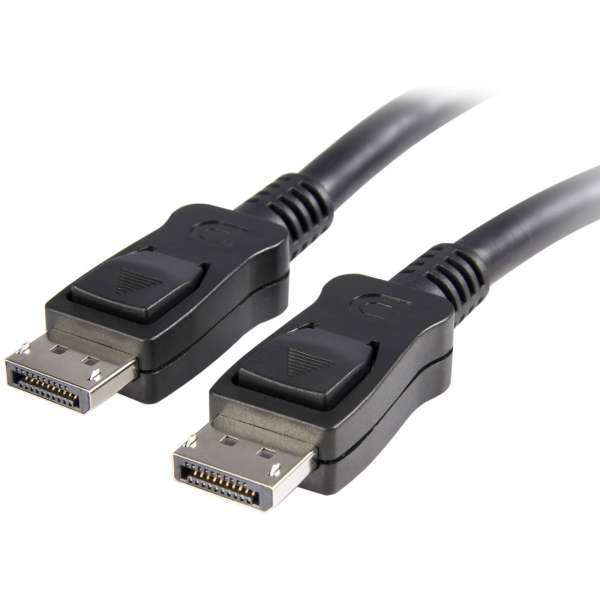

StarTech.com 25 ft DisplayPort Cable with Latches

SKU
STCDISPLPORT25L
$80.09 /EACH

Delivered in 2-4 business days

Out of stock
  • HIGH PERFORMANCE CABLE: This 25ft (7m) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
  • QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
  • SPECS: 25 ft (7 m) | Black | DisplayPort v1.0 | DP Latching Male to Male | 26 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: MST, GTC | Lifetime Warranty

The DISPLPORT25L 25-foot DisplayPort® cable provides a connection of up to 25ft between a DisplayPort source and a DisplayPort display, with no loss of signal quality - almost/,more than double the typical DisplayPort connection distance limitation of 16ft. Its 26 gauge (AWG) pure copper wire, and Aluminum and Mylar shielding helps to eliminate EMI and RFI interference. Delivering a maximum bandwidth of 10.8 Gbps, the DISPLPORT25L is capable of providing higher performance than either HDMI® or dual link DVI and supporting next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560×1600). The DisplayPort cable's small, USB-sized latching connectors support two-way display connectivity and optional audio support. The DISPLPORT25L DisplayPort cable is both HDCP and DPCP capable, ensuring that digitally protected content is displayed properly on the connected display.


American Wire Gauge26 AWG
Brand NameStarTech.com
Cable Length25 ft
Cable TypeDisplayPort
Compatibility

AMD Graphic Cards

  • FirePro S9000
  • 7000
  • W8100
  • 7100
  • 5100
  • R5000
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector PlatingGold
Connector Type on First EndDisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second EndDisplayPort 1.2 Digital Audio/Video - Male
Country of OriginChina
Data Transfer Rate10.8 Gbit/s
Device SupportedAudio/Video Device
Device SupportedGraphics Card
Device SupportedMonitor
Device SupportedNotebook
Device SupportedProjector
Device SupportedWorkstation
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesDamage Resistant
FeaturesDPCP
FeaturesEMI Protection
FeaturesEMI/RF Protection
FeaturesFlexible
FeaturesFray Resistant
FeaturesHDCP
FeaturesLatching Connector
FeaturesMolded
FeaturesMulti-Stream Transport (MST) Support
FeaturesStrain Relief
Jacket MaterialPolyvinyl Chloride (PVC)
Jacket TypeCMG
Limited WarrantyLifetime
Manufacturer Part NumberDISPLPORT25L
ManufacturerStarTech.com
Packaged Quantity1
Product ColorBlack
Product Name25 ft DisplayPort Cable with Latches - M/M
Product TypeVideo Cable
ShieldingYes
Supported Resolution4096 x 2160
Weight (Approximate)1.24 lb
UNSPSC26121604
Download PDF File
BrandStarTech.com
Weight (lbs)1.3000
UPC065030834995
MPNDISPLPORT25L
