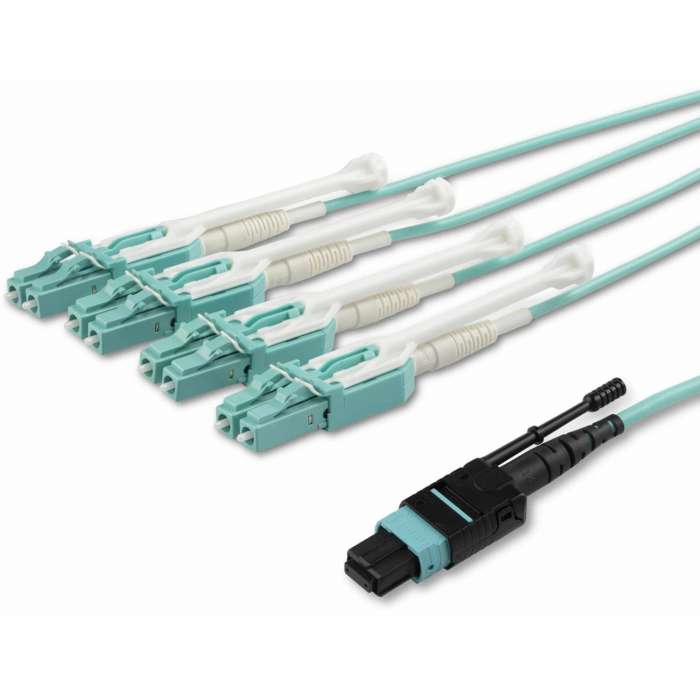

StarTech.com 2m 6 ft MPO / MTP to LC Breakout Cable
SKU
STCMPO8LCPL2M
by StarTech.com
$60.13 /EACH
Delivered in 2-4 business days
Out of stock
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 2m (6.6ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ?0.5dB (MTP), ?0.2dB (LC)
Category: Cables & Adapters
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO8LCPL2M from StarTech.com is backed by a lifetime warranty.
| Brand Name | StarTech.com |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Length | 6.56 ft |
| Cable Type | Fiber Optic |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Core/Cladding Diameter | 50/125 µm |
| Country of Origin | China |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Hub |
| Device Supported | Media Converter |
| Device Supported | Network Device |
| Device Supported | Patch Panel |
| Device Supported | Router |
| Device Supported | Switch |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Push-Pull Tab |
| Features | Uniboot Connector |
| Fiber Optic Mode | Multi-mode |
| Jacket Type | CMP |
| Jacket Type | OFNP |
| Jacket Type | Plenum |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | MPO8LCPL2M |
| Manufacturer | StarTech.com |
| Packaged Quantity | 1 |
| Product Color | Aqua |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Product Type | Network Cable |
| Weight (Approximate) | 0.10 lb |
| UNSPSC | 26121607 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.1200 |
| UPC | 065030879019 |
| MPN | MPO8LCPL2M |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
