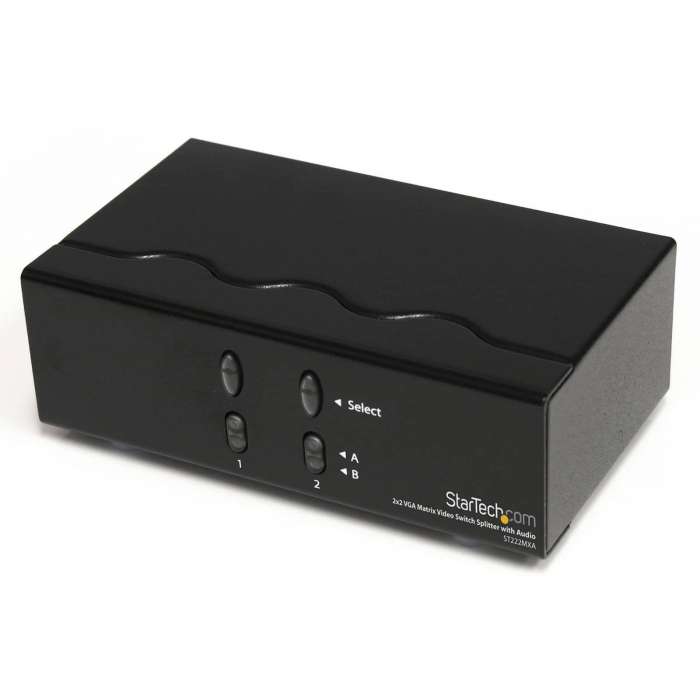

StarTech.com 2x2 VGA Matrix Video Switch Splitter with Audio

SKU
STCST222MXA
$104.77 /EACH

Delivered in 2-4 business days

Out of stock
  • Allows two VGA source devices to provide video and audio to two displays / projectors
  • Maximum Resolution of up to 1920 x 1440 @ 85Hz
  • Video bandwidth 250 MHz
  • Front panel selection buttons
  • 65m (213ft) Maximum cable length
  • 3.5mm stereo audio connections
  • Audio Frequency Response 20Hz~20KHz
  • Supports DDC, DDC2, DDC2B
  • Supports Multi-Sync video types including RGBHV, RGsB, RGBS

The ST222MXA 2x2 VGA Matrix Switcher/Splitter allows you to share 2 distinct VGA inputs (as well as a corresponding audio source), between 2 independent displays or projectors. Providing convenient push-button control, the VGA Matrix Switcher/Splitter allows each of the 2 input VGA signals and the corresponding audio, to be switched individually - meaning that you can have a different source showing on each display, or one source showing on both, offering maximum flexibility and control. To ensure optimized VGA distribution and signal management over longer distance signal transmissions, the ST222MXA VGA Matrix Switch features a built-in signal booster that facilitates installation of displays at distances of up to 213-feet (65 meters) away from the source device, while maintaining flawless signal integrity. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Connectivity TechnologyCable
Country of OriginTaiwan
Depth5.1"
Device SupportedComputer
Device SupportedDisplay
Device SupportedProjector
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDesktop
Height1.6"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberST222MXA
Maximum Operating Distance213 ft
Maximum Video Resolution1920 x 1440
Number of Displays Supported2
Number of Input Devices Supported2
Number of VGA Inputs2
Number of VGA Outputs2
Package Contents
  • 2x2 VGA Matrix Video Switch Splitter with Audio
  • 1 x Power Adapter
  • 1 x Instruction Manual
Packaged Quantity1
Product Name2x2 VGA Matrix Video Switch Splitter with Audio
Product TypeVideo Switchbox
TAA CompliantYes
VGA InYes
VGA OutYes
Weight (Approximate)1.02 lb
Width3.1"
Download PDF File
BrandStarTech.com
Weight (lbs)1.7500
UPC065030841825
MPNST222MXA
