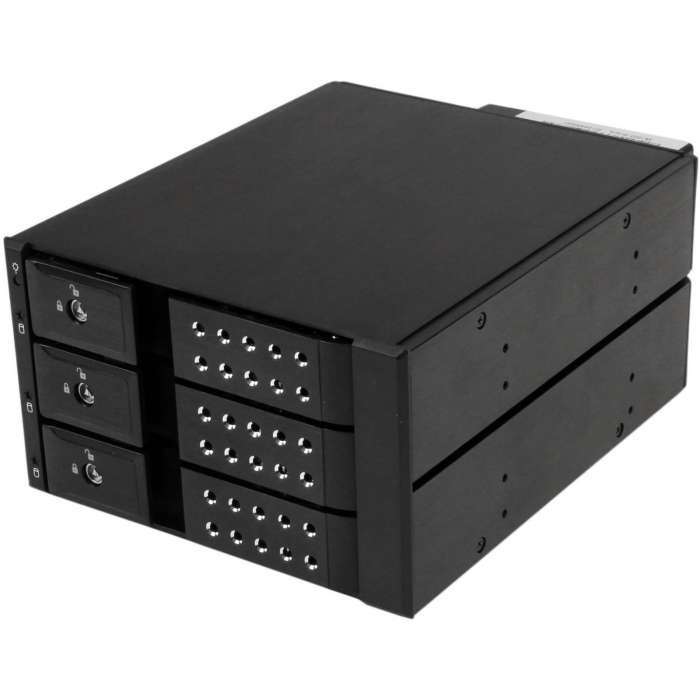

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Delivered in 2-4 business days
- Solid aluminum construction
- Key lock design
- Built-in fan
- 3 drive bay design
- Installs in two 5.25" drive bays
- Trayless design for hot swap support
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
- UL VO flammability rating
- Power and Activity LEDs for each drive
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Country of Origin | China |
| Depth | 7.6" |
| Drive Interface | SATA/600 |
| Drive Interface | Serial Attached SCSI (SAS) |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Internal |
| Height | 4.3" |
| Host Interface | Serial ATA/600 |
| Limited Warranty | 2 Year |
| Manufacturer Part Number | HSB3SATSASBA |
| Manufacturer | StarTech.com |
| Number of 3.5" Bays | 3 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Supported | 3 |
| Number of Total Expansion Bays | 3 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Color | Black |
| Product Material | Aluminum |
| Product Name | 3 SATA HDD Backplane |
| Product Type | Drive Enclosure |
| Weight (Approximate) | 2.70 lb |
| Width | 5.7" |
| Wireless LAN | No |
| UNSPSC | 43202206 |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 2.3500 |
| UPC | 065030855297 |
| MPN | HSB3SATSASBA |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
