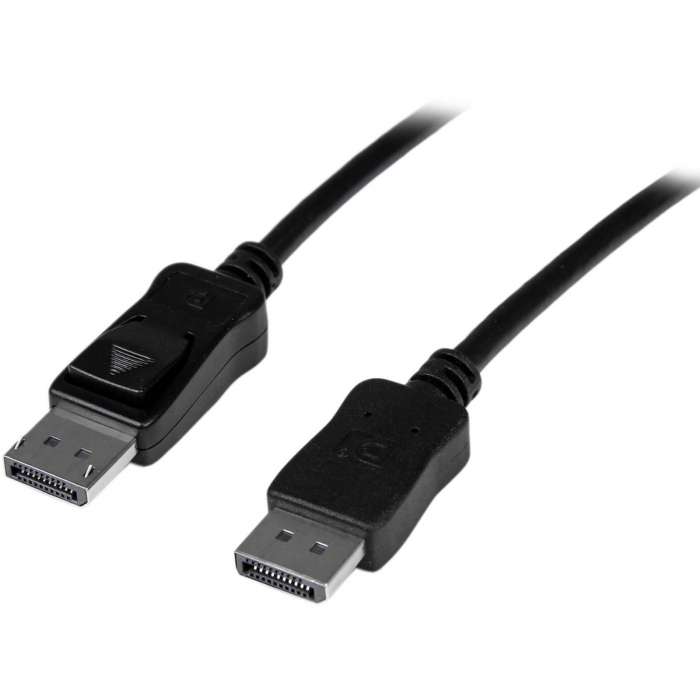

StarTech.com 32ft (10m) Active DisplayPort Cable, 4K UHD DisplayPort Cable, Long DP Cable/Cord for Projector/Monitor, w/ Latches

SKU
STCDISPL10MA
$56.27 /EACH

Delivered in 2-4 business days

Out of stock
  • ACTIVE DISPLAYPORT CABLE: Active 10m (32.8ft) DisplayPort cable supports 4K (3840x2160p at 30Hz), 10.8 Gbps bandwidth, HBR, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (1080p at 60Hz)
  • ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 10 m (32.8 ft) (no external power supply needed), supports additional color spaces
  • LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms, works with your laptop/professional workstations with FirePro S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with UHD/4K monitors, projector or large display
  • SPECS: 10 m (32.8 ft) | Black | DisplayPort v1.2 Latching Male to Male | 32 AWG | PVC cable jacket | Shield: Al-Mylar foil with Braid | Protocols: HBR, MST, GTC | 2-Year Warranty | Note: DP connector labelled "Display" connects to the display side

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss. This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly. This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty. Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.


American Wire Gauge32 AWG
Brand NameStarTech.com
Cable Length32.81 ft
Cable TypeDisplayPort
CompatibilityFirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector PlatingNickel
Connector Type on First EndDisplayPort Digital Audio/Video - Male
Connector Type on Second EndDisplayPort Digital Audio/Video - Male
Country of OriginChina
Data Transfer Rate10.8 Gbit/s
Device SupportedAmplifier
Device SupportedAudio/Video Device
Device SupportedGraphics Card
Device SupportedMonitor
Device SupportedNotebook
Device SupportedProjector
Device SupportedWorkstation
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesActive
FeaturesDPCP
FeaturesEMI Protection
FeaturesFlexible
FeaturesHDCP
FeaturesLatching Connector
FeaturesMulti-Stream Transport (MST) Support
FeaturesSignal Booster
Jacket MaterialPolyvinyl Chloride (PVC)
Jacket TypeCMG
Limited Warranty2 Year
Manufacturer Part NumberDISPL10MA
ManufacturerStarTech.com
Packaged Quantity1
Product ColorBlack
Product Name10m Active DisplayPort Cable - DP to DP M/M
Product TypeVideo Cable
ShieldingYes
Supported Resolution3840 x 2400
Weight (Approximate)1 lb
UNSPSC26121604
Download PDF File
BrandStarTech.com
Weight (lbs)1.0800
UPC065030854221
MPNDISPL10MA
