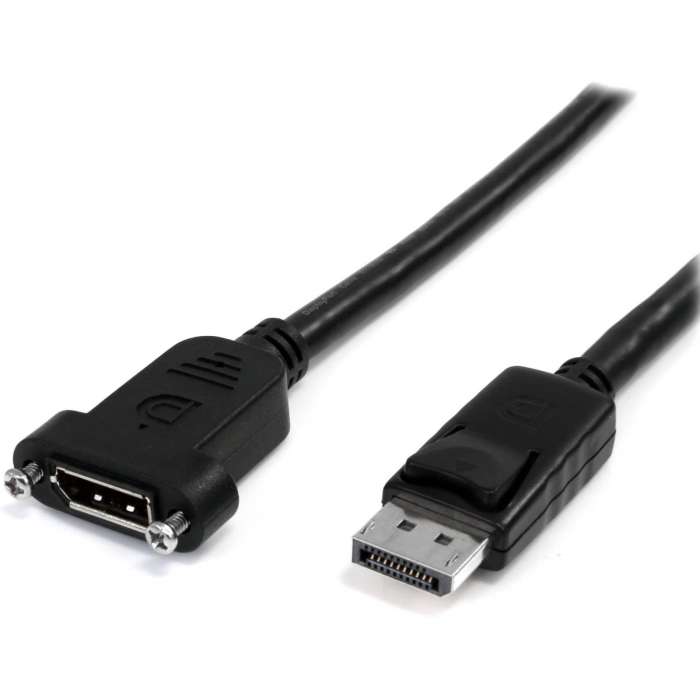

StarTech.com 3ft (1m) Panel Mount DisplayPort Cable, 4K x 2K Video, DisplayPort 1.2 Extension Cable Male to Female, DP Extender Cord
SKU
STCDPPNLFM3PW
by StarTech.com
$32.77 /EACH
Delivered in 2-4 business days
Out of stock
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m) | White | DisplayPort 1.2 | DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Double sided copper foil | Backward compatible w/ DP1.1 | Lifetime Warranty
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Cables & Adapters
The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly. The DPPNLFM3PW is backed by StarTech.com's lifetime warranty for guaranteed reliability.
| American Wire Gauge | 28 AWG |
|---|---|
| Brand Name | StarTech.com |
| Cable Length | 3 ft |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Contact Plating | Gold |
| Country of Origin | China |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Audio/Video Device |
| Device Supported | Faceplate |
| Device Supported | PC |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Damage Resistant |
| Features | EMI Protection |
| Features | Flexible |
| Features | Fray Resistant |
| Features | Latching Connector |
| Features | Molded |
| Features | Strain Relief |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | DPPNLFM3PW |
| Manufacturer | StarTech.com |
| Product Color | White |
| Product Name | 3 ft Powered DisplayPort Panel Mount Cable |
| Product Type | Video Cable |
| Shielding | Yes |
| Supported Resolution | 3840 x 2400 |
| Weight (Approximate) | 0.22 lb |
| UNSPSC | 26121604 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.2000 |
| UPC | 065030840866 |
| MPN | DPPNLFM3PW |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
