StarTech.com 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord

SKU
STCDP14MDPMM1MB
$41.08 /EACH

Delivered in 2-4 business days

Out of stock
  • 34 AWG .
  • Black .
  • DisplayPort 1.4 .
  • EMI Shielding .
  • Jacket: PVC .
  • Lifetime Warranty.
  • Mini DP Male to DP Male .
  • BROAD COMPATIBILITY: Works with Nvidia Quadro: P620, P600, P400, and AMD Radeon Pro: VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500 & FirePro: W9100/900/600/4100; Works with mDP 1.2 and Thunderbolt 2 host device (1080p/4K).
  • DURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish.
  • mDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors.
  • RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection.
  • SPECS: 3.3ft (1m) .
  • Supported Protocols: HBR 3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2, MST.

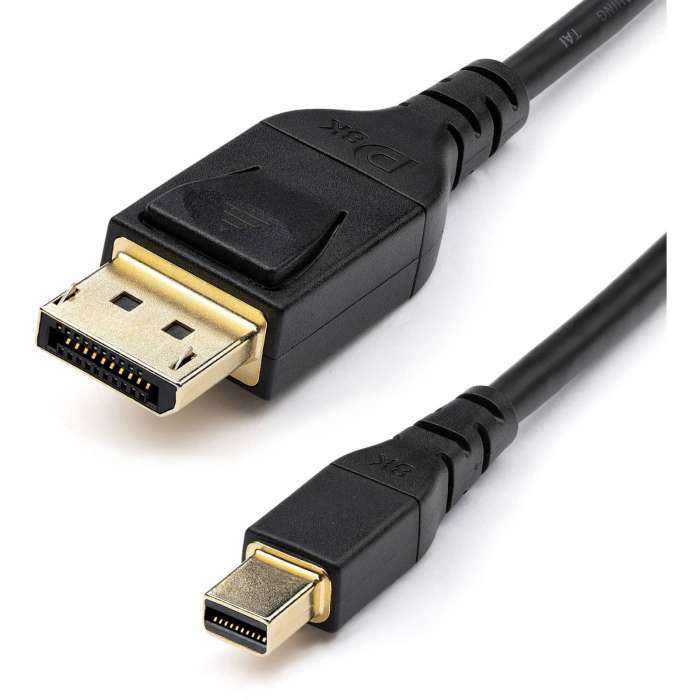

This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection. Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports: Multi-Stream Transport (MST) for daisy chaining multiple monitors. Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio. HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards. Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate. Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays. Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as: Radeon™ VII, SSG, WX x100, Pro and FirePro™ series. Nvidia Quadro P series. Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications. Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection. The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.


American Wire Gauge34 AWG
Brand NameStarTech.com
Cable Length3.28 ft
Cable TypeDisplayPort/Mini DisplayPort
Compatibility

Nvidia Quadro Graphic Cards:

  • P620
  • P600
  • P400

AMD Graphic Cards:

  • Radeon Pro VII
  • Radeon Pro SSG
  • Radeon Pro WX9100
  • Radeon Pro WX4100
  • Radeon Pro WX3200
  • Radeon Pro WX3100
  • Radeon Pro WX2100
  • Radeon Pro W5700
  • Radeon Pro W5500
  • FirePro W9100
  • FirePro 900
  • FirePro 600
  • FirePro 4100
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector PlatingGold
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second EndMini DisplayPort 1.2 Digital Audio/Video - Male
Country of OriginChina
Data Transfer Rate32.4 Gbit/s
Device SupportedAudio/Video Device
Device SupportedComputer
Device SupportedGraphics Card
Device SupportedMAC
Device SupportedMonitor
Device SupportedNotebook
Device SupportedPC
Device SupportedProjector
Device SupportedTV
Device SupportedWorkstation
FeaturesBend Resistant
FeaturesDisplay Stream Compression (DSC) 1.2
FeaturesDPCP
FeaturesEMI Protection
FeaturesForward Error Correction (FEC) Support
FeaturesHDCP 2.2
FeaturesLatching Connector
FeaturesMulti-Stream Transport (MST) Support
FeaturesStrain Relief
FeaturesStress Resistant
FeaturesTarnish Resistant
Jacket MaterialPolyvinyl Chloride (PVC)
Limited WarrantyLifetime
Manufacturer Part NumberDP14MDPMM1MB
ManufacturerStarTech.com
Product ColorBlack
Product NameMini Displayport to Displayport Cable
Product TypeVideo Cable
ShieldingYes
Supported Resolution7680 x 4320
UNSPSC26121604
BrandStarTech.com
Weight (lbs)0.1000
UPC065030891899
MPNDP14MDPMM1MB
