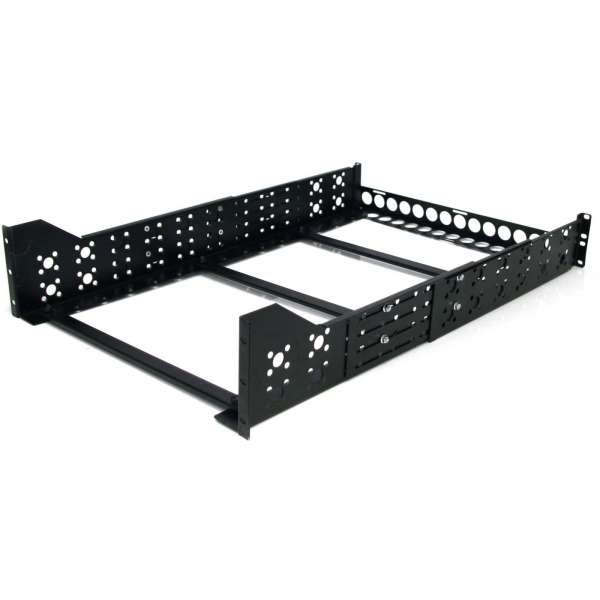

StarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails

SKU
STCUNIRAILS3U
$139.41 /EACH
In stock

These 3U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. Turn non-rackmount equipment into 3U rackmount hardware These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security. Universal design mounts to almost any 19" server rack Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization. Maximum durability To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg). The UNIRAILS3U is backed by a lifetime StarTech.com warranty with free technical support.


Product TypeRack Rail
Height5.2"
Width18.3"
Depth18.9"
Weight (Approximate)8.31 lb
Package Contents
  • 1 x Set Universal Rack Rails
  • 14 x M5 Panel Screws
  • 14 x M5 Cage Nuts
  • 1 x M5 Wrench
Additional Information
  • Mounting Height
3U
  • Cross bars allow for mounting of equipment that can't span the 19" rack expanse
  • Three-piece rail construction enables a broad range of adjustable depth configurations, to accommodate almost any size of rack
  • Universal design mounts to almost any 19" server, or other equipment for maximum mounting versatility
  • Maximum Mounting Depth
  • 41.5 in
  • Minimum Mounting Depth
  • 16.54 in
    Certifications & Standards
    • UL
    • CE
    Assembly RequiredYes
    Environmentally FriendlyYes
    Environmental Certification
    • RoHS
    • REACH
    Country of OriginTaiwan
    TAA CompliantYes
    Limited WarrantyLifetime
    Download PDF File
    BrandStarTech.com
    Weight (lbs)8.900000
    UPC065030845632
    MPNUNIRAILS3U
