StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
SKU
STCPEX4S232485
by StarTech.com
$168.86 /EACH
Delivered in 2-4 business days
Out of stock
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- RS232 data transfer rates up to 460 Kbps
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver
- Standard and low-profile bracket included
- Compliant with PCI-Express Specification 1.0a
- Supports PCI Power Management 1.1
Category: Cables & Adapters

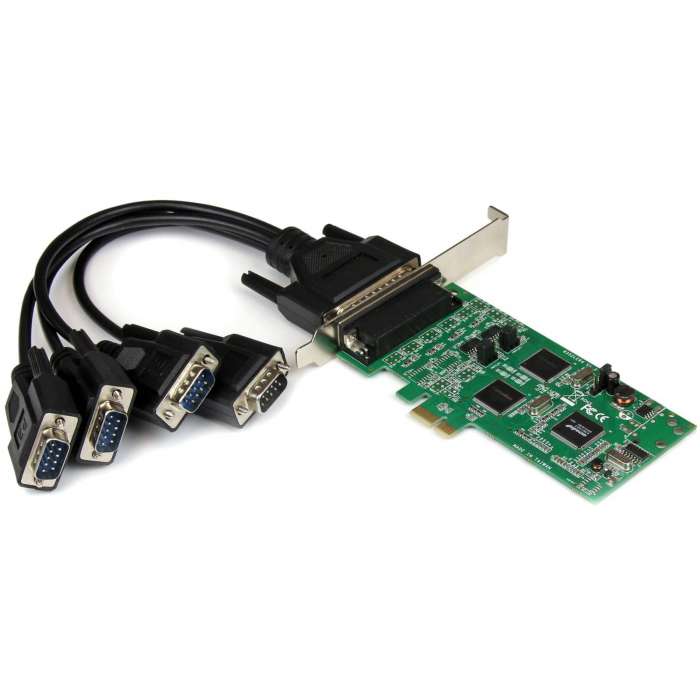

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot. This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes. A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections. Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 2.7" |
| Host Interface | PCI Express x1 |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | PEX4S232485 |
| Manufacturer | StarTech.com |
| Maximum Data Transfer Rate | 3.59 Mbit/s |
| Package Contents |
|
| Packaged Quantity | 1 |
| Ports Expandability | 4 x DB-9 RS-232/422/485 - Serial, Via Cable |
| Product Name | 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 |
| Product Type | Multiport Serial Adapter |
| TAA Compliant | Yes |
| Weight (Approximate) | 2.40 oz |
| Width | 0.6" |
| UNSPSC | 43201407 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.8800 |
| UPC | 065030849357 |
| MPN | PEX4S232485 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
