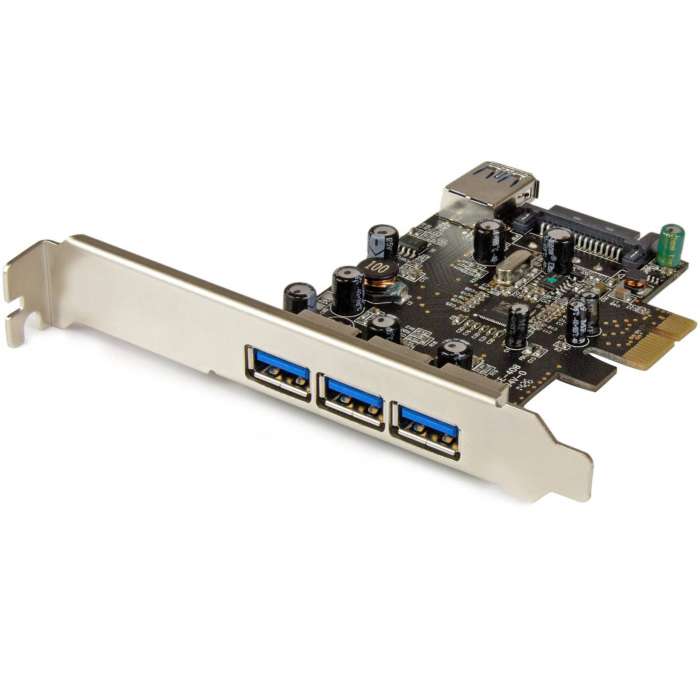

StarTech.com 4 Port PCI Express USB 3.0 Card

SKU
STCPEXUSB3S42
$56.41 /EACH

Delivered in 2-4 business days

In stock
  • Expands your computer connectivity with four extra USB 3.2 Gen 1 ports (3 external, 1 internal)
  • Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
  • Fits standard or small form-factor computers, low-profile bracket included
  • Data transfer rates up to 5 Gbps plus UASP support
  • Backward compatible with USB 2.0 and 1.x devices
  • Built-in optional SATA power connector provides up to 900mA per USB port
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications

Here's a cost-effective solution for adding USB 3.2 Gen 1 connectivity to your computer. This 4-port PCIe USB 3.2 Gen 1 card gives you three external ports and one internal port, for the ultimate connection flexibility. With three external USB 3.2 Gen 1 ports you can connect more devices to your computer. The card provides easy access to commonly-used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device such as a flash drive inside your computer case, providing added security and convenience. USB 3.2 Gen 1 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices. Setup is a breeze with native operating system support. The USB 3.2 Gen 1 adapter card automatically installs in Windows 8.1, 8 and 7. For convenient installation, this PCI Express USB 3.2 Gen 1 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems. This high-performance USB 3.2 Gen 1 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.2 Gen 1, when paired with . The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.


Brand NameStarTech.com
Country of OriginChina
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorPlug-in Card
Height4.7"
Host InterfacePCI Express x1
Length3.4"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberPEXUSB3S42
Number of SATA Ports1
Number of USB 3.2 Ports4
Operating System SupportedLinux
Operating System SupportedWindows 10
Operating System SupportedWindows 11
Operating System SupportedWindows 7
Operating System SupportedWindows 8
Operating System SupportedWindows 8.1
Operating System SupportedWindows Server 2008 R2
Operating System SupportedWindows Server 2012
Operating System SupportedWindows Server 2016
Operating System SupportedWindows Server 2019
Operating System SupportedWindows Vista
Operating System SupportedWindows XP
Package Contents
  • 4-Port PCI Express USB 3.0 Card - 5Gbps
  • 1 x Low-Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Packaged Quantity1
Platform SupportedLinux
Platform SupportedPC
Product Name4-Port PCI Express USB 3.0 Card - 5Gbps
Product TypeUSB Adapter
Total Number of USB Ports4
UASP SupportYes
Weight (Approximate)1.90 oz
Width0.7"
Download PDF File
BrandStarTech.com
Weight (lbs)0.2500
UPC065030860321
MPNPEXUSB3S42
