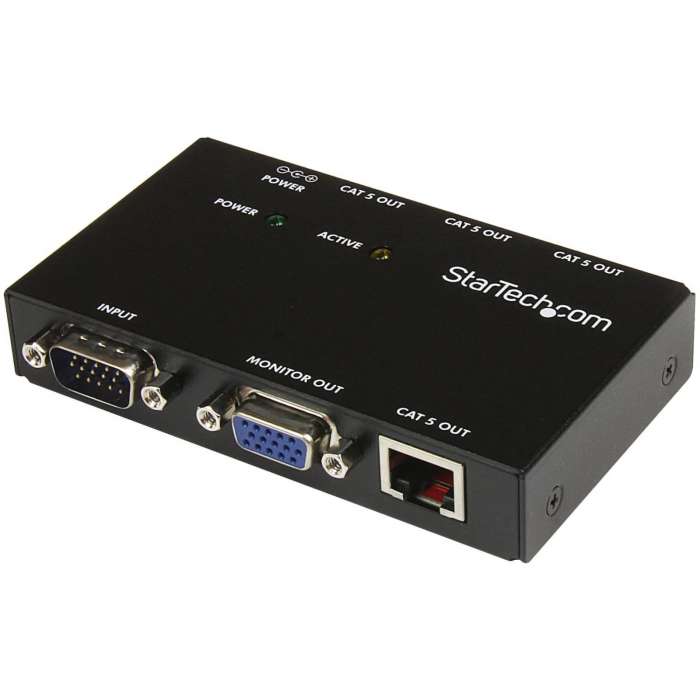

StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m)

SKU
STCST1214T
$179.73 /EACH

Delivered in 2-4 business days

In stock
  • Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga extender over cat 5 - VGA to Cat5 Extender

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing. Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Brand NameStarTech.com
Connectivity TechnologyWired
Country of OriginTaiwan
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDesktop
Graphics ModesVGA
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberST1214T
Maximum Operating Distance492.13 ft
Maximum Video Resolution1600 x 1200
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Number of Input Devices Supported1
Number of Network (RJ-45) Ports4
Number of VGA Inputs1
Number of VGA Outputs1
Package Contents
  • 4 Port VGA Video Extender over Cat 5
  • 4 x Rubber Feet
  • 1 x Universal Power Adapter (NA/UK/EU)
Product Name4 Port VGA Video Extender over Cat 5
Product TypeVideo Extender Transmitter
TAA CompliantYes
Transmitter Depth4.10"
Transmitter Height0.80"
Transmitter Weight (Approximate)7.09 oz
Transmitter Width2.50"
Twisted Pair Cable StandardCategory 5
VGA InYes
VGA OutYes
Download PDF File
BrandStarTech.com
Weight (lbs)1.1500
UPC065030824446
MPNST1214T
Prop65 WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
