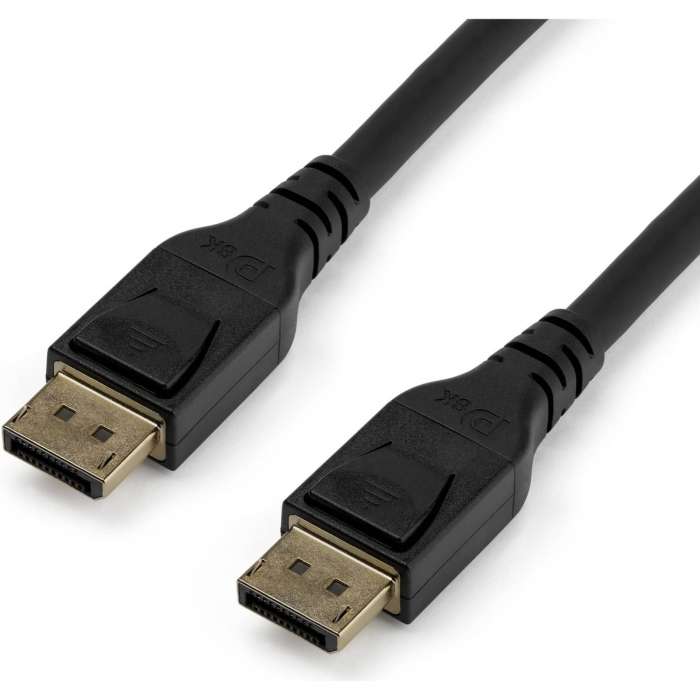

StarTech.com 5 m VESA Certified DisplayPort 1.4 Cable

SKU
STCDP14MM5M
$55.80 /EACH

Delivered in 2-4 business days

Out of stock
  • HIGH PERFORMANCE CABLE: 16.4 ft (5 m) VESA Certified cable supports 8K 60Hz (7680x4320), 4K 120Hz (3840x2160), 32.4Gbps bandwidth, HDR10 for high contrast ratio, HBR3, 32 ch audio, MST, GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
  • RELIABLE DESIGN: Built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil with Braid (85% coverage) provide EMI shielding; Latching DP connectors prevent accidental disconnection
  • DURABLE: PVC jacket of this (0.30"/7.5mm outer diameter) video cable absorbs stress of frequent bends protecting the core of the DisplayPort cord; corrosion resistant gold-plated connectors & 28 AWG wire for higher quality video and audio
  • APPLICATIONS: Ideal for home/offices/boardrooms/classrooms, works with your professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with UHD monitors/displays
  • SPECS: 5 m (16.4ft) | Black | DisplayPort 1.4 | DP Male to Male | 28 AWG | PVC Jacket | Al-Mylar foil with 85% Braid | HBR 3, DSC 1.2, HDCP 2.2, 3D Stereo (2560x1600p 120Hz) | Compatible with DP 1.1/1.2/1.3 (1080p/4K) cards & adapters | Lifetime Warranty

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz. The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video. This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability. The Superior Performance of DisplayPort 1.4 This 8K DisplayPort cable supports all DP 1.4 features: High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards High Dynamic Range (HDR) for higher contrast ratio and vivid colors Multi-Stream Transport (MST) for daisy-chaining multiple monitors Display Stream Compression 1.2 (DSC) for maximum resolution output Forward Error Correction to manage data transmission errors High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display 32 Uncompressed Digital Audio Channels Flexible Cable with Reliable Latched Connectors The cable has a slim professional grade 28 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices. 8K: Enabling Business Continuity 8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure. Comprehensive Product Testing & Expert Technical Support StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. DP14MM5M is backed by a StarTech.com lifetime warranty.


American Wire Gauge28 AWG
Brand NameStarTech.com
Cable Length16.40 ft
Cable TypeDisplayPort
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector PlatingNickel
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second EndDisplayPort 1.4 Digital Audio/Video - Male
Country of OriginChina
Data Transfer Rate32.4 Gbit/s
Device SupportedAudio/Video Device
Device SupportedDesktop Computer
Device SupportedDigital Signage Player
Device SupportedMonitor
Device SupportedProjector
Device SupportedTV
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
FeaturesDisplay Stream Compression (DSC)
FeaturesEMI Protection
FeaturesFire Resistant
FeaturesFlexible
FeaturesForward Error Correction (FEC) Support
FeaturesHDCP 2.2
FeaturesHDR Support
FeaturesLocking Latch
Jacket MaterialPolyvinyl Chloride (PVC)
Jacket TypeVW-1
Limited WarrantyLifetime
Manufacturer Part NumberDP14MM5M
ManufacturerStarTech.com
Packaged Quantity1
Product ColorBlack
Product Name16.4 ft. (5 m) DisplayPort 1.4 Cable - VESA Certified
Product TypeVideo Cable
ShieldingYes
Supported Resolution7680 x 4320
Weight (Approximate)0.89 lb
UNSPSC26121604
Download PDF File
BrandStarTech.com
Weight (lbs)0.9500
UPC065030880558
MPNDP14MM5M
