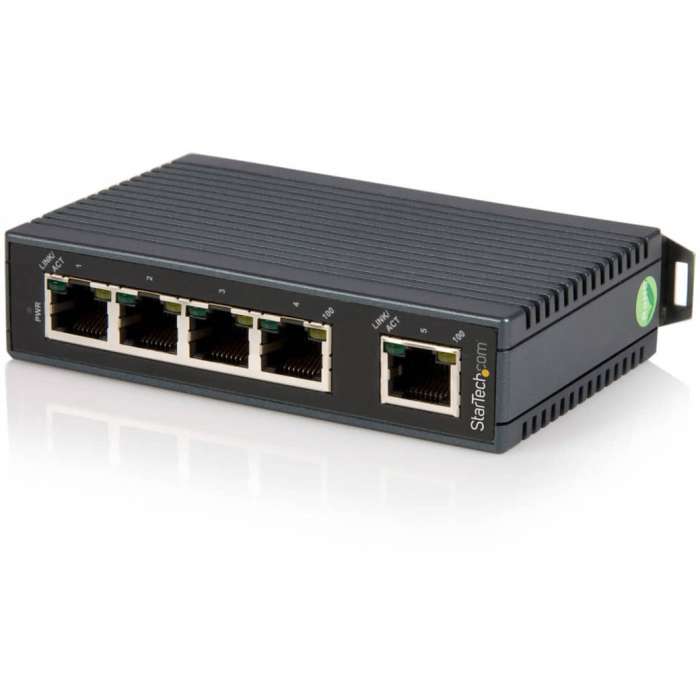

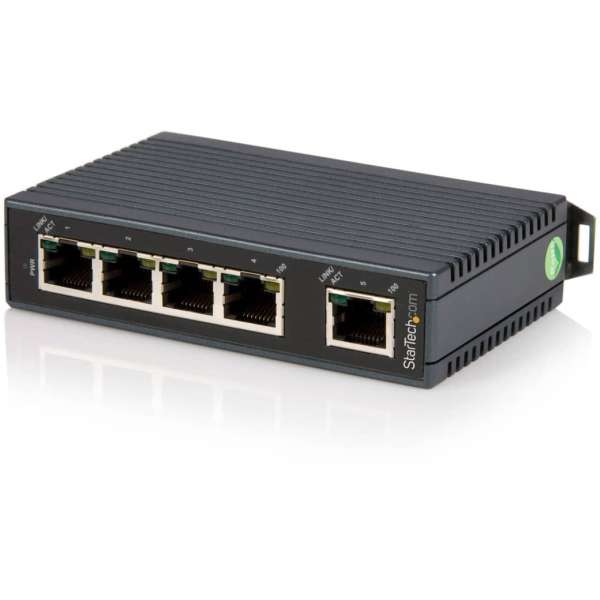

StarTech.com 5 Port Industrial Ethernet Switch, DIN Rail Mountable, Expand your network connectivity with this rugged unmanaged network switch, Fast 10/100Mbps Switch, DIN rail mountable w/ built-in bracket
Delivered in 2-4 business days
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
- Wider range of operating temperatures, ideal for industrial environments
- IEEE 802.3az Energy-Efficient Ethernet
- Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
- Supports IEEE 802.3x flow control and back pressure
- Store-and-forward switching mechanism
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name | StarTech.com |
---|---|
Bypass (Interfaces/Ports) | No |
Certifications & Standards | CE; FCCIndustry Sandards:; IEEE 802.3; IEEE 802.3u; IEEE 802.3az; IEEE 802.1PRegulatory Approvals:; EN61000-6-2; EN61000-6-4; EN61000-4-3 (Radiated RFI Standards); EN61000-4-4 (Burst Standards); EN61000-4-6 (Induced RFI Standards); EN61000-4-8 (Magnetic Field Standards); IEC60068-2-6 Fc (Vibration); IEC60068-2-27 Ea (Shock) |
Country of Origin | Taiwan |
Environmental Certification | REACH |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Ethernet Technology | Fast Ethernet |
Form Factor | Rail-mountable |
Height | 4.3" |
Layer Supported | 2 |
Length | 2.8" |
LRE Port (Interfaces/Ports) | No |
Manageable | No |
Management Port (Interfaces/Ports) | No |
Manufacturer Part Number | IES5102 |
Manufacturer | StarTech.com |
Media Type Supported | Twisted Pair |
Modular (Interfaces/Ports) | No |
MTBF (Reliability) | 1179133 Hour |
Network (RJ-45) (Interfaces/Ports) | Yes |
Network Technology | 10/100Base-TX |
Number of Network (RJ-45) Ports (Interfaces/Ports) | 5 |
Package Contents | 5-Port Industrial Ethernet Switch - DIN Rail Mountable; 1 x Terminal Block; 1 x Instruction Manual CD |
Packaged Quantity | 1 |
PoE (RJ-45) Port | No |
Port/Expansion Slot Details (Interfaces/Ports) | 5 x Fast Ethernet Network |
Power Consumption | 2.12 W |
Product Color | Black |
Product Material | Plastic |
Product Name | 5-Port Industrial Ethernet Switch - DIN Rail Mountable |
Product Type | Ethernet Switch |
Stack Port (Interfaces/Ports) | No |
Stack Port | No |
TAA Compliant | Yes |
Token Ring Port (Interfaces/Ports) | No |
Total Number of Network Ports (Interfaces/Ports) | 5 |
Total Number of Network Ports | 5 |
USB (Interfaces/Ports) | No |
Weight (Approximate) | 5.30 oz |
Width | 1" |
Download PDF File |
UPC | 065030859745 |
---|---|
Weight (lbs) | 0.8000 |
MPN | IES5102 |
Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
Brand | StarTech.com |
