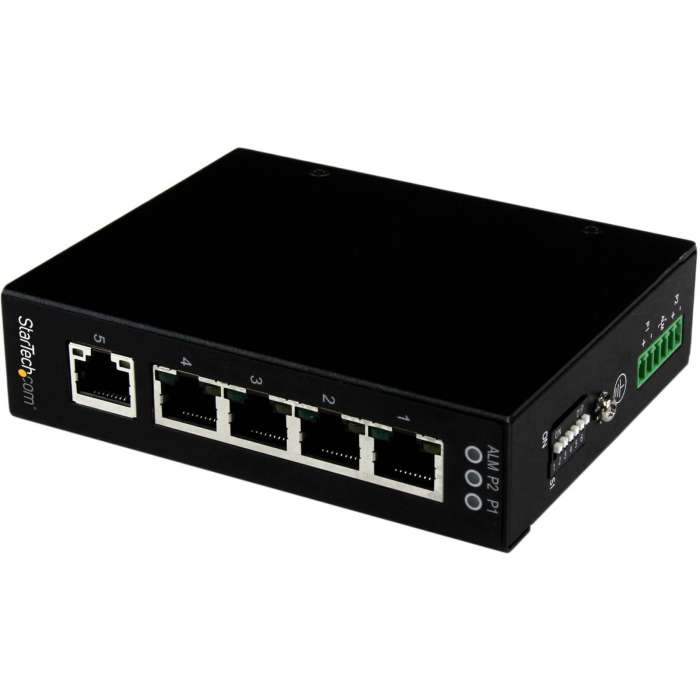

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch
Delivered in 2-4 business days
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rail-mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Depth | 4.4" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Rail-mountable |
| Form Factor | Wall Mountable |
| Height | 1.1" |
| Layer Supported | 2 |
| Limited Warranty | 2 Year |
| Manageable | No |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES51000 |
| Media Type Supported | Twisted Pair |
| Modular | No |
| Network (RJ-45) | Yes |
| Network Technology | 10/100/1000Base-T |
| Package Contents |
|
| Packaged Quantity | 1 |
| PoE (RJ-45) Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Power Consumption | 62 W |
| Power Source | AC Adapter |
| Product Name | 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable |
| Product Type | Ethernet Switch |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Weight (Approximate) | 11.60 oz |
| Width | 3.5" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.1500 |
| UPC | 065030859318 |
| MPN | IES51000 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
