StarTech.com 5m 40G QSFP+ to QSFP+ Direct Attach Cable for Cisco QSFP-H40G-CU5M, 40GbE Copper DAC 40 Gbps Passive Twinax, 100% Cisco QSFP-H40G-CU5M Compatible 5m 40G direct attach cable, 40 Gbps Passive Twinax Copper Low Power 2x QSFP+ Pluggable Connector
Delivered in 2-4 business days
- Hot-swappable.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24..
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches.
- TECHNICAL SPECS: 5m (16.4ft)
- 40 Gbps
- Passive Twinax (Copper)
- 2x QSFP+ Pluggable Connector
- 100 Ohm Impedance
- 30 AWG Wire Gauge
- PVC Cable Jacket
- Hot swappable
- MSA Compliant.
- 100% CISCO QSFP-H40G-CU5M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others .
- Hot swappable
- PVC Cable Jacket
- 30 AWG Wire Gauge
- 100 Ohm Impedance
- 2x QSFP+ Pluggable Connector
- Passive Twinax (Copper)
- 40 Gbps

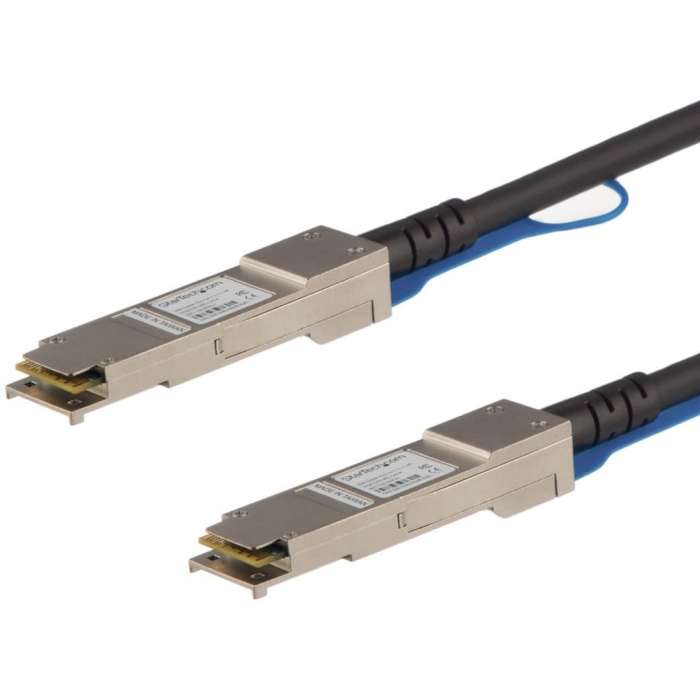

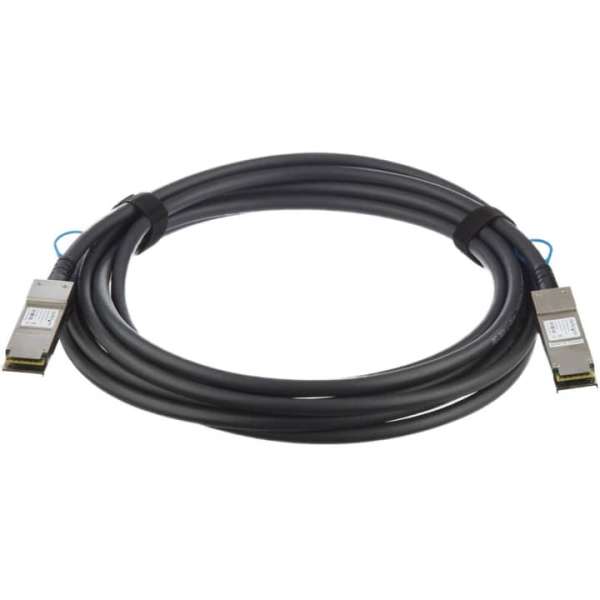

The QSFPH40GCU5M is a Cisco QSFP-H40G-CU5M compatible direct-attach copper QSFP+ cable that's designed, programmed and tested to work with Cisco brand compatible switches and routers and complies with MSA industry standards. This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections. StarTech.com SFP Cables. All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
| American Wire Gauge | 30 AWG |
|---|---|
| Brand Name | StarTech.com |
| Cable Length | 16.40 ft |
| Cable Type | Twinaxial |
| Compatibility | Cisco Switches:; C9300; C9200; C9400; C9500; C9600 |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Country of Origin | Taiwan |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Server |
| Device Supported | Switch |
| Device Supported | Transceiver |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Hot-swappable |
| Features | Passive |
| Manufacturer Part Number | QSFPH40GCU5M |
| Manufacturer | StarTech.com |
| Packaged Quantity | 1 |
| Product Color | Black |
| Product Material | Copper |
| Product Name | QSFP+ Direct Attach Cable - 5 m (16.4 ft.) |
| Product Type | Network Cable |
| Weight (Approximate) | 0.99 lb |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.9000 |
| UPC | 065030875349 |
| MPN | QSFPH40GCU5M |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
