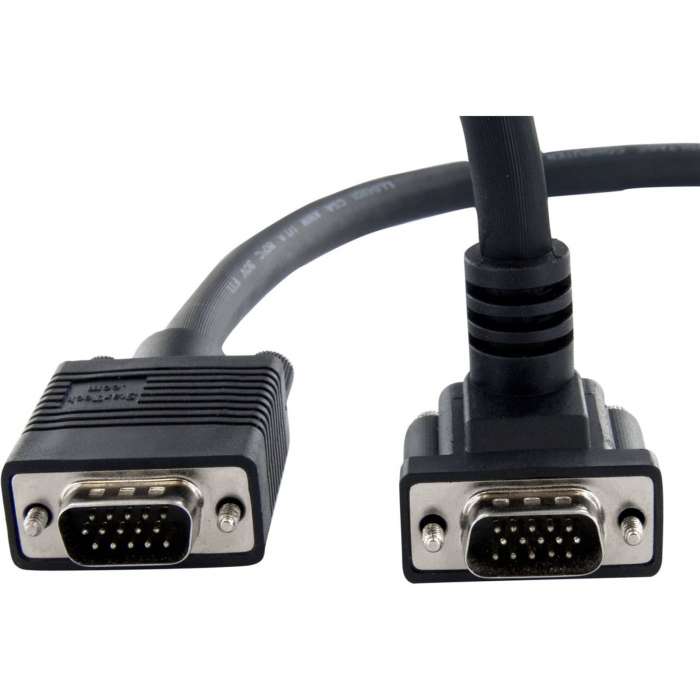

StarTech.com 6 ft 90 Degree Down Angled VGA Monitor Cable
SKU
STCMXT101MMHD6
by StarTech.com
$20.21 /EACH
Delivered in 2-4 business days
Out of stock
- 90? downward-angled connector with a 32.4mm depth
- Ferrite core
- Ideal for high resolution monitors (1280x1024 and above)
- Impedance matched at 75 Ohms
- Molded connector ends with strain relief
- Triple-coaxial + twisted-pair wire construction
Category: Cables & Adapters
This 6ft High Resolution Video VGA Cable (90 degree) is designed to provide the highest video quality possible through a VGA connection and is specifically constructed to accomodate tight installation spaces.The high quality, shielded coax VGA cable features a 90 degree down-angled plug, which requires only 32.4mm (1.27") of space to make the video connection.More than suitable for high-res VGA applications (1280x1024 resolution and above), the 90 degree VGA cable eliminates picture "ghosting" and fuzzy images that are common with non-coaxial cables, and provides superior EMI interference protection using ferrite cores near the connector ends.
| American Wire Gauge | 28 AWG |
|---|---|
| Brand Name | StarTech.com |
| Cable Length | 6 ft |
| Cable Type | Coaxial |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| Connector Type on First End | HD-15 - Male |
| Connector Type on Second End | HD-15 - Male |
| Country of Origin | China |
| Device Supported | Monitor |
| Device Supported | Video Device |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | 90° Angled Connector |
| Features | Down-angled Connector |
| Features | EMI Protection |
| Features | Ferrite Bead |
| Features | Molded |
| Features | Strain Relief |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | MXT101MMHD6 |
| Manufacturer | StarTech.com |
| Product Color | Black |
| Product Name | 6 ft 90 Degree Down Angled VGA Monitor Cable |
| Product Type | Video Cable |
| Shielding | Yes |
| Weight (Approximate) | 0.34 lb |
| UNSPSC | 26121606 |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.0000 |
| UPC | 065030836395 |
| MPN | MXT101MMHD6 |
