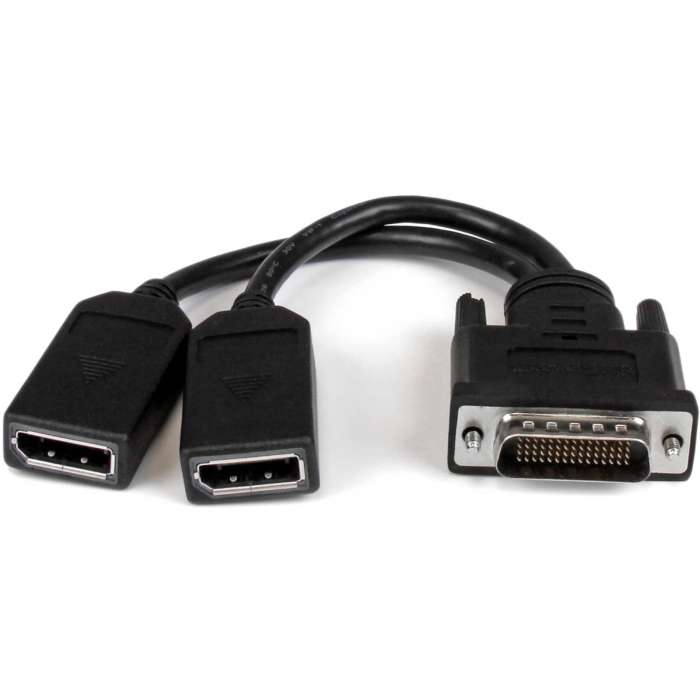

StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors
SKU
STCDMSDPDP1
by StarTech.com
$39.47 /EACH
Delivered in 2-4 business days
Out of stock
- DMS-59 TO DUAL DISPLAYPORT ADAPTER CABLE: This 7.8 in (20 cm) DMS-59 P to 2x DP v1.2 extension cable (male to 2x female connectors) supports 4K x 2K video (3840 x 2400p 60Hz), 1920 x 1200p, Full HD 1080p, 21.6 Gbps bandwidth, HBR2
- RELIABLE DESIGN: Durable and flexible molded PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Cost-effective replacement for damaged or misplaced DMS-59 to dual DisplayPort splitter y cables
- QUALITY CONSTRUCTION: 32AWG wire and EMI shielding with Aluminium foil and Braid provide superior signal integrity and reliability for higher quality video and audio; Use this DMS-59 to DisplayPort cable with DMS/LFH 59 graphics cards
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with TB2/Mini-DP port)/professional workstations with FirePro W9100/8100, NVS 810/510 graphic card; UHD/4K monitor/projector/display; Apple MacBook Pro/Air, Microsoft Surface Pro 1-6
- SPECS: 6 feet (2 m) | Black | DP v1.2 | Mini DisplayPort Male to Female | 30 AWG | PVC cable jacket, ABS connector shell | Shield: Aluminium foil with Braid | Protocols: HBR 2, MST, GTC | Backwards compatible with DP1.1 | Lifetime Warranty
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Cables & Adapters
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors. The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®; PNY, ATI and HP. Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability - making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.
| American Wire Gauge | 32 AWG |
|---|---|
| Brand Name | StarTech.com |
| Cable Characteristic | Splitter Cable |
| Cable Length | 8" |
| Cable Type | DMS-59/DisplayPort |
| Compatibility |
|
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Connector on First End Details | 1 x 59-pin DMS-59 Video - Male |
| Connector on Second End Details | 2 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating | Nickel |
| Connector Type on First End | DMS-59 Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Country of Origin | China |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Audio/Video Device |
| Device Supported | Graphics Card |
| Device Supported | MacBook Air |
| Device Supported | MacBook Pro |
| Device Supported | Monitor |
| Device Supported | Tablet |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Damage Resistant |
| Features | EMI Protection |
| Features | Flexible |
| Features | Fray Resistant |
| Features | Molded |
| Features | Multi-Stream Transport (MST) Support |
| Features | Strain Relief |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | DMSDPDP1 |
| Manufacturer | StarTech.com |
| Packaged Quantity | 1 |
| Product Color | Black |
| Product Name | 8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable |
| Product Type | Video Cable |
| Shielding | Yes |
| Supported Resolution | 3840 x 2400 |
| Weight (Approximate) | 0.17 lb |
| UNSPSC | 26121604 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.2000 |
| UPC | 065030859592 |
| MPN | DMSDPDP1 |
