StarTech.com Bi-Directional SATA IDE Adapter Converter

SKU
STCPATA2SATA3

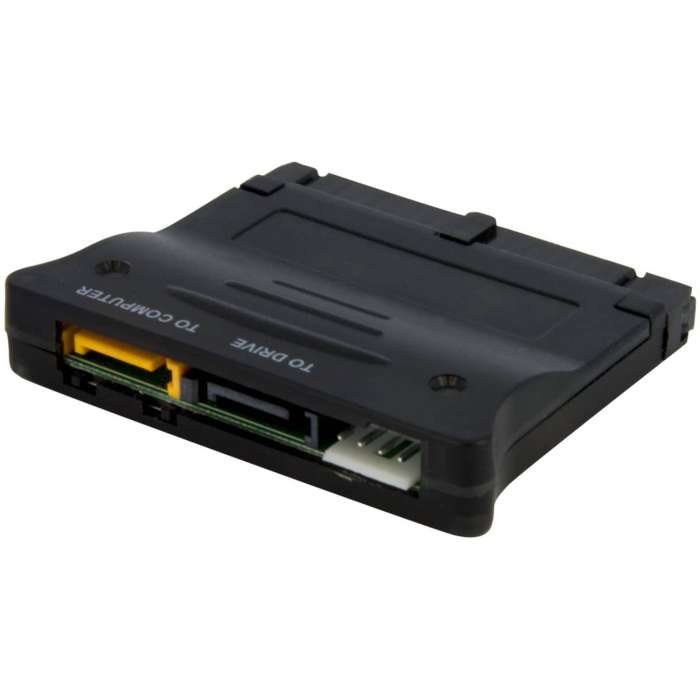

main product photo
$45.41 /EACH

Delivered in 2-4 business days

Out of stock
Notify me when this product is in stock
  • Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication
  • Compatible with PATA (IDE) 100/133 MBps hard devices
  • Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices
  • Supports SATA/IDE ATAPI devices, such as CD/DVD optical drives
  • Fully compliant with Serial ATA 1.0a specifications, with transfer rates up to 1.5 Gbps
  • Compatible with Master/Slave/Cable Select modes for IDE devices
  • No driver or software required
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Cables & Adapters

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port. A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation. In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.


Packaged Quantity1
Product TypeIDE to SATA Adapter
Product ColorBlack
Product MaterialPlastic
Height0.4"
Width2"
Length2.4"
Weight (Approximate)0.71 oz
Package Contents
  • Bi-Directional SATA IDE Converter
  • SP4 to Dual LP4 Y
  • Power Adapter
  • SATA Cable Instruction Manua
Additional Information
  • Warranty
2 Years
  • Connector Type(s):
    • 1 - IDE (40 Pin, EIDE/PATA)
    • 2 - SATA (7 pin, Data)
    • 1 - SP4 (4 pin, Small Drive Power)
  • Operating Temperature
    		• 0°C to 70°C (32°F to 158°F)
  • Storage Temperature
    		• -40°C to 150°C (-40°F to 302°F)
  • Humidity
    		• 90% RH
  • Number of Drives
    		• 1
  • Drive Size
    		• 2.5in & 3.5in
  • Compatible Drive Types
    		• SATA & IDE
  • Chipset ID
    		• SunplusIT - SPIF223A
  • Type and Rate
    		• SATA I (1.5 Gbps)
  • Hardware Raid Supported
    		• No
    Certifications & Standards
    • CE
    • FCC
    Environmentally FriendlyYes
    Environmental Certification
    • RoHS
    • REACH
    • WEEE
    Country of OriginChina
    TAA CompliantYes
    Limited Warranty2 Year
    Download PDF File
    BrandStarTech.com
    Weight (lbs)0.2500
    UPC065030836982
    MPNPATA2SATA3
