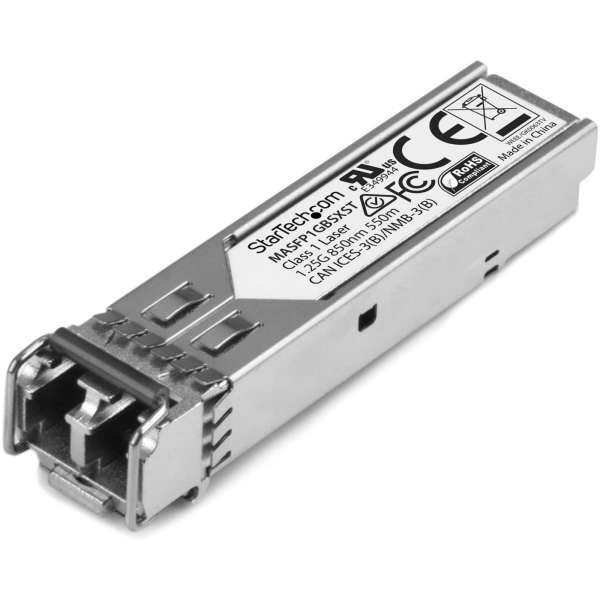

StarTech.com Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module
Delivered in 2-4 business days
- 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 1000BASE-SX - 1 Gbps - Multi Mode (MMF) - LC Connector - 850nm - Digital Diagnostic Monitoring (DDM) - Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft). Technical Specifications: Wavelength: 850nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550m (1804 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
| Application/Usage | Data Networking |
|---|---|
| Application/Usage | Optical Network |
| Brand Name | StarTech.com |
| Compatibility |
|
| Connector Type | LC |
| Country of Origin | China |
| Depth | 2.2" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Form Factor | Hot-pluggable |
| Form Factor | Hot-swappable |
| Height | 0.5" |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Limited Warranty | Lifetime |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MASFP1GBSXST |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Packaged Quantity | 1 |
| Product Name | Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX |
| Product Type | SFP (mini-GBIC) |
| Total Number of Ports | 1 |
| Weight (Approximate) | 0.03 lb |
| Width | 0.5" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.1000 |
| UPC | 065030868655 |
| MPN | MASFP1GBSXST |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
