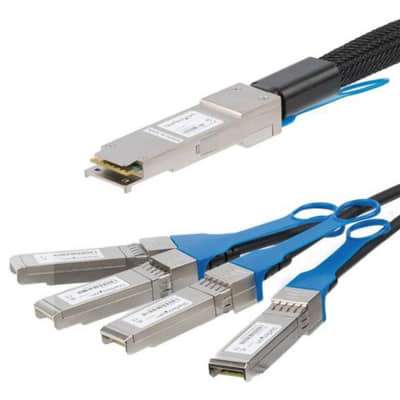

StarTech.com Cisco QSFP-4SFP10G-CU5M Compatible 5m 1x QSFP+ to 4x SFP+ Direct Attach Breakout Cable
Delivered in 2-4 business days
- 100% CISCO QSFP-4SFP10G-CU5M COMPATIBLE QSFP+ BREAKOUT DAC: Works with Cisco switches like Firepower, C9300, C3850, C9300, C9500 and others
- TECHNICAL SPECS: 5m (16.4ft) - 40Gbps - Passive Twinax (Copper) - 2x QSFP+ Pluggable Connector - 100 Ohm Impedance - 30 AWG Wire Gauge - PVC Cable Jacket - Hot swappable - MSA Compliant
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
The QSFP4SFP10C5 is a Cisco QSFP-4SFP10G-CU5M compatible QSFP+ direct-attach breakout cable. It is designed, programmed and tested to work with Cisco® brand compatible servers or routers and complies with MSA industry standards. Connecting a single QSFP+ port to four 10G SFP+ ports, this passive copper breakout cable is fully hot-pluggable which makes upgrades and replacements seamless by minimizing network disruptions. Designed for short-length and high-speed interconnects, this low-power, low-latency copper QSFP+ cable is also a cost-effective alternative to fiber-optic cable assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices. StarTech.com SFP Cables All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
| American Wire Gauge | 30 AWG |
|---|---|
| Brand Name | StarTech.com |
| Cable Length | 16.40 ft |
| Cable Type | Twinaxial |
| Compatibility | Cisco Firewall and Switches:
|
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Country of Origin | Taiwan |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Router |
| Device Supported | Server |
| Device Supported | Switch |
| Device Supported | Transceiver |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Hot-swappable |
| Features | Passive |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | QSFP4SFP10C5 |
| Manufacturer | StarTech.com |
| Packaged Quantity | 1 |
| Product Color | Black |
| Product Material | Copper |
| Product Name | Twinaxial Network Cable |
| Product Type | Network Cable |
| Weight (Approximate) | 1.10 lb |
| UNSPSC | 26121609 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.8500 |
| UPC | 065030874984 |
| MPN | QSFP4SFP10C5 |
