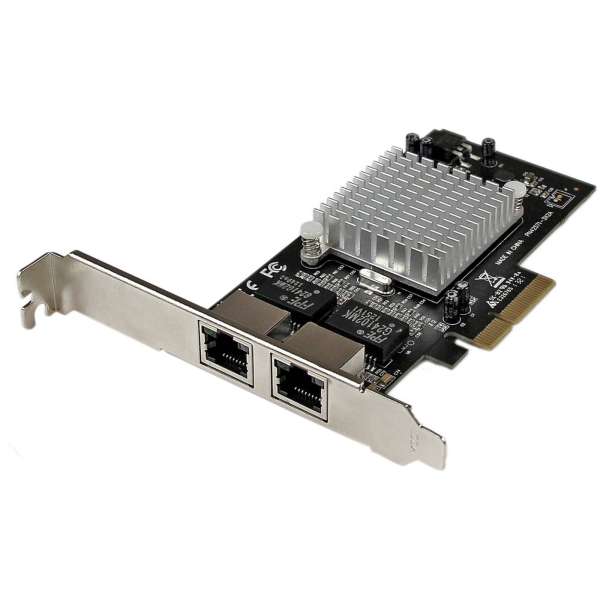

StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card
Delivered in 2-4 business days
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation. This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration. Also useful for virtualization applications (check your VM software for chipset compatibility)or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Packaged Quantity | 1 |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | I350-AM2 |
| Host Interface | PCI Express x4 |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| USB | No |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Data Transfer Rate | 1024 MB/s |
| Network Technology | 10/100/1000Base-T |
| InfiniBand | No |
| Form Factor | Plug-in Card |
| Height | 4.8" |
| Width | 0.7" |
| Depth | 2.6" |
| Length | 2.6" |
| Weight (Approximate) | 2.80 oz |
| Package Contents |
|
| Device Supported | Computer |
| System Requirements |
|
| Environmentally Friendly | Yes |
| Environmental Certification |
|
| Country of Origin | China |
| Limited Warranty | 2 Year |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.3500 |
| UPC | 065030852739 |
| MPN | ST2000SPEXI |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
