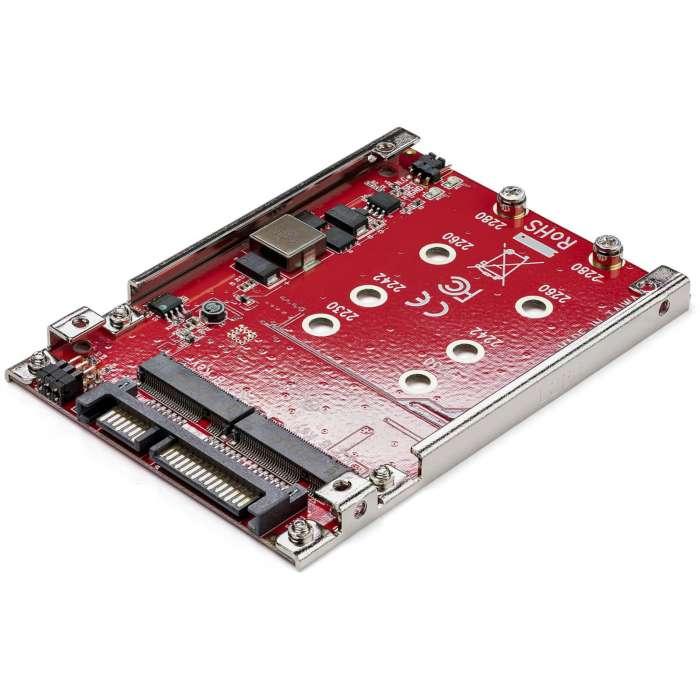

StarTech.com Dual-Slot M.2 to SATA Adapter

SKU
STCS322M225R
$83.59 /EACH

Delivered in 2-4 business days

Out of stock
  • HIGH PERFORMANCE: Create a high-performance storage solution by installing up to two M.2 SATA SSDs into a 2.5" SATA adapter with RAID support for JBOD, SPAN, RAID 0, and RAID 1
  • HASSLE-FREE SETUP: Open-frame steel mounting bracket with 2.5" SATA form factor fits in any 2.5" SATA bay that supports 7mm tall 2.5" drives. Easy to install with all necessary hardware incl. (M.2 drives and screwdriver not incl.)
  • WIDE COMPATIBILITY: Supports B & B+M key SATA M.2 SSDs in 2230/2242/2260/2280 form factors. Supports SATA I, II, and III (up to 6 Gbps) TRIM, and SMART. M & B+M key NVMe or AHCI PCI-e M.2 SSDs not supported (only SATA supported)
  • TRIM SUPPORT: TRIM support enhances the stability and performance of your M.2 SSDs plus it provides SMART support. TRIM supported in JBOD and RAID 1, SMART only supported in JBOD
  • NOTE: Before purchasing this product or your M.2, please confirm if it is a SATA type, via manufacturer specifications/support; if you intend to use JBOD (don't intend to use RAID) then make sure that your SATA port/controller supports Port Multiplier

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array. Build a RAID array to enhance system performance The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another. Maximize file transfer speeds The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps. The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs. Easy installation This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn't require any extra software or drivers, to get you up and running quickly. The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth3.9"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Height0.3"
Limited Warranty2 Year
Manufacturer Part NumberS322M225R
ManufacturerStarTech.com
Package Contents
  • Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
  • 2 x Sets of Drive-mounting Hardware
  • 4 x Adapter-mounting Screws
  • 1 x Quick-start Guide
Packaged Quantity1
Product ColorRed
Product MaterialSteel
Product NameDual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
Product TypeM.2 to SATA Adapter
TAA CompliantYes
Weight (Approximate)1.45 oz
Width2.8"
UNSPSC43211600
Download PDF File
BrandStarTech.com
Weight (lbs)0.2500
UPC065030875141
MPNS322M225R
