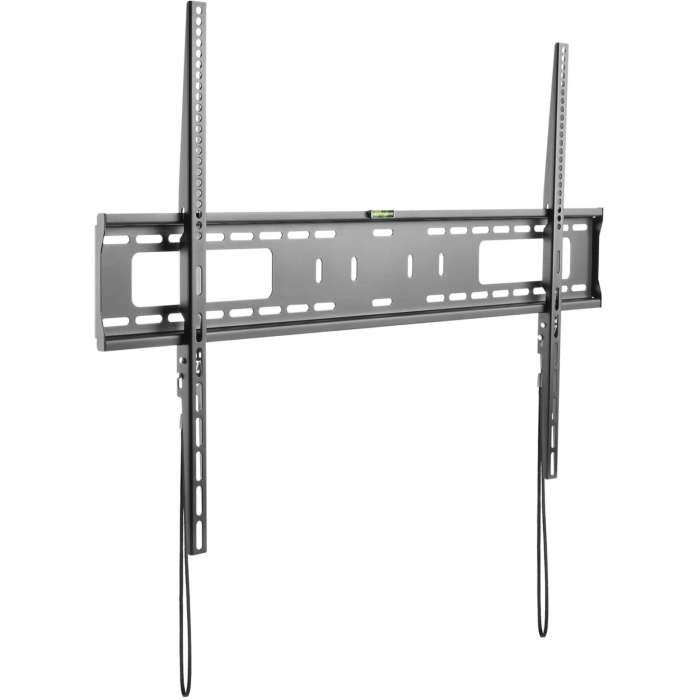

StarTech.com Flat Screen TV Wall Mount

SKU
STCFPWFXB1
$107.67 /EACH

Delivered in 2-4 business days

Out of stock
  • Securely mount large commercial TVs and digital signage to boardrooms, lobbies and anywhere large displays are required
  • Designed to support slim TVs up to 165 lbs. (75kg), ideal for 60? to 100? TVs
  • Mount TV or display using the spring locks and simply remove using the release straps
  • Universal LCD/LED television mount supports LG, Samsung, Sony, others (screws/spacers incl) & VESA bracket hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600
  • Supports 60?, 65?, 70?, 75?, 80?, 85?, 90?, 95? and 100? TVs

This heavy-duty TV wall mount is ideal for commercial and business purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large professional display needs to be mounted. Engineered for Heavy Duty Commercial Grade TVs This TV wall mount is designed to be used with commercial or heavy-duty televisions and displays. It supports a weight of up to 165 lbs. or 75 kilograms and has been thoroughly tested to triple the rated weight capacity to ensure premium product quality and reliable performance. The mount is ideal for 60" to 100" TVs including curved TVs; however, most larger or smaller TVs can be accommodated if they fall within the listed weight capacity. Straightforward Installation & Removal This TV mount is VESA® compatible and has two rows of seventeen mounting holes across the wall bracket to accommodate a variety of spacing between studs and helping you to center your display. The included bubble level helps to ensure an accurate mount to the wall. Once the wall bracket is attached to the wall and the vertical brackets are attached to the TV, the TV simply attaches to the mount using the spring locks and can be as easily removed using the release pull straps. Comprehensive Product Testing & Expert Technical Support StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. FPWFXB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginChina
Device SupportedCurved Screen Display
Device SupportedFlat Panel Display
Environmental CertificationREACH
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesBubble Level
FeaturesHeavy Duty
FeaturesSpring Lock
Height1.2"
Length37.6"
Limited Warranty5 Year
Manufacturer Part NumberFPWFXB1
ManufacturerStarTech.com
Maximum Load Capacity165.35 lb
Maximum Screen Size Supported100"
Minimum Screen Size Supported60"
Mounting Pattern100 x 100
Mounting Pattern100 x 200
Mounting Pattern200 x 100
Mounting Pattern200 x 200
Mounting Pattern200 x 300
Mounting Pattern200 x 400
Mounting Pattern300 x 200
Mounting Pattern300 x 300
Mounting Pattern400 x 200
Mounting Pattern400 x 300
Mounting Pattern400 x 400
Mounting Pattern600 x 200
Mounting Pattern600 x 300
Mounting Pattern600 x 400
Mounting Pattern600 x 600
Mounting Pattern800 x 400
Mounting Pattern800 x 600
Mounting Pattern900 x 600
Number of Displays Supported1
Package Contents
  • 1 x Wall Bracket
  • 2 x Vertical Brackets
  • 1 x Bubble Level
  • 4 x (M5 x 14) Screws
  • 4 x (M6 x 14) Screws
  • 4 x (M6 x 30) Screws
  • 4 x (M8 x 30) Screws
  • 4 x (M8 x 50) Screws
  • 4 x Rectangular Washers
  • 8 x Small Spacers
  • 8 x Large Spacers
  • 6 x Wall Screws
  • 6 x Concrete Anchors
  • 6 x Round Washers
  • 1 x User Manual
Product ColorBlack
Product MaterialPlastic
Product MaterialSteel
Product ModelFPWFXB1
Product NameHeavy Duty Commercial Grade TV Wall Mount - Fixed - Up to 100" TVs
Product TypeWall Mount
VESA Mount CompatibleYes
Weight (Approximate)7.72 lb
Width24.6"
UNSPSC31162313
Download PDF File
BrandStarTech.com
Weight (lbs)8.0000
UPC065030880497
MPNFPWFXB1
