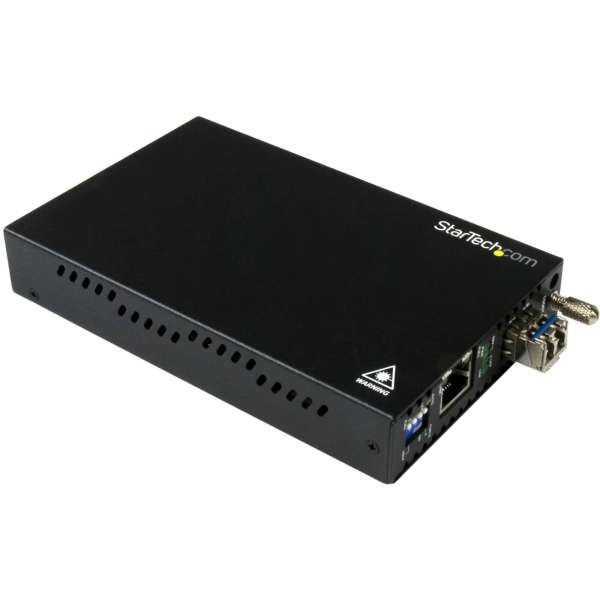

StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter
Delivered in 2-4 business days
- Flexible network integration, with support for standalone operation, or installation into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately)
- Converts copper to fiber and extends your network up to 20 km (12.4 mi.) using single-mode LC fiber-optic cable (1310 nm)
- Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change
- Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX
- Up to 9.6K Jumbo Frame support
This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 20 km (12.4 mi.). Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications. Flexible integration into mixed network environments This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it's compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately). The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements. With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable. Rugged and reliable This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses. Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses. Diagnose and correct issues easily This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily. Prepare your network for the future If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together. The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Depth | 6.4" |
| DVI | No |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
| Form Factor | Rack-mountable |
| Form Factor | Standalone |
| Height | 0.9" |
| LC Port Type | Duplex |
| Limited Warranty | 2 Year |
| Management Port | No |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ET91000SM20 |
| Maximum Distance Supported | 12.43 Mile |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-T |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Plug/Connector Type | Type M |
| Power Consumption | 19.20 W |
| Power Source | AC Adapter |
| Product Name | Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 20 km |
| Product Type | Transceiver/Media Converter |
| TAA Compliant | Yes |
| Total Number of Ports | 2 |
| USB | No |
| Weight (Approximate) | 14.50 oz |
| Width | 3.5" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.7000 |
| UPC | 065030864947 |
| MPN | ET91000SM20 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
