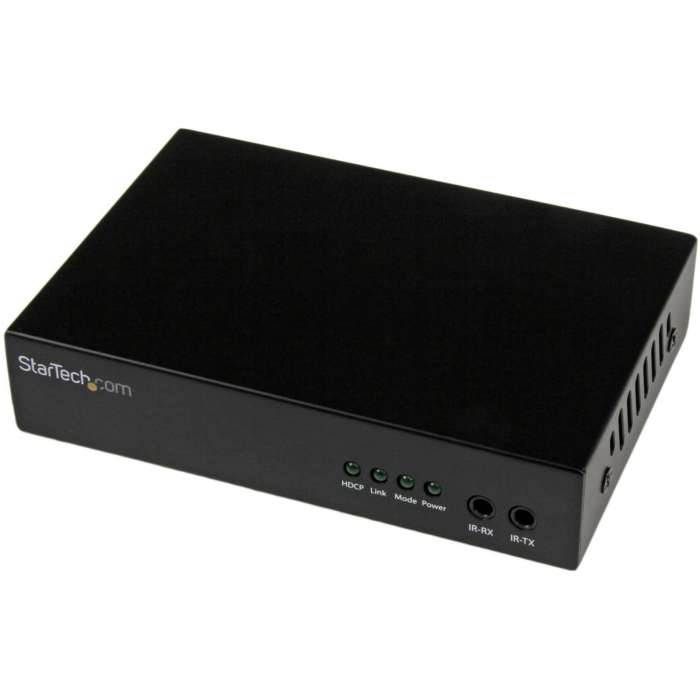

StarTech.com HDBaseT over CAT5e HDMI Receiver for ST424HDBT - 230ft (70m) - 1080p

SKU
STCSTHDBTRX
$123.74 /EACH

Delivered in 2-4 business days

Out of stock
  • 230ft (70m) HDMI extension over Cat5/6 Cabling
  • IR extender/receiver cables included
  • Mounting brackets included
  • Support for video resolution up to 1920x1200/1080p

This HDBaseT receiver works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display. Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense and hassle of running multiple devices with an HDMI matrix switch and extender in one clutter-free system. Because the signal is extended using standard Cat5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors. For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender and receiver cables. The STHDBTRX is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product TypeVideo Extender Receiver
Connectivity TechnologyWired
Number of Output Devices Supported1
Maximum Operating Distance230 ft
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Network (RJ-45)Yes
HDMI OutYes
Number of Network (RJ-45) Ports1
Number of HDMI Outputs1
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Input Voltage5 V DC
Product ColorBlack
Product MaterialAluminum
Receiver Height0.90"
Receiver Width3"
Receiver Depth4.30"
Length4.3"
Form FactorDesktop
Transmitter Weight (Approximate)7.60 oz
Package Contents
  • 1 X Hdmi Receiver Unit
  • 1 X Mounting Brackets
  • 1 X Ir Kit (Transmitter/Receiver)
  • 1 x Universal Power Adapter (NA/UK/EU/AUS)
  • 1 X Quick Install Guide
Certifications & Standards
  • FCC
  • CE
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • WEEE
  • REACH
Country of OriginChina
Limited Warranty2 Year
Download PDF File
BrandStarTech.com
Weight (lbs)1.2500
UPC065030855013
MPNSTHDBTRX
