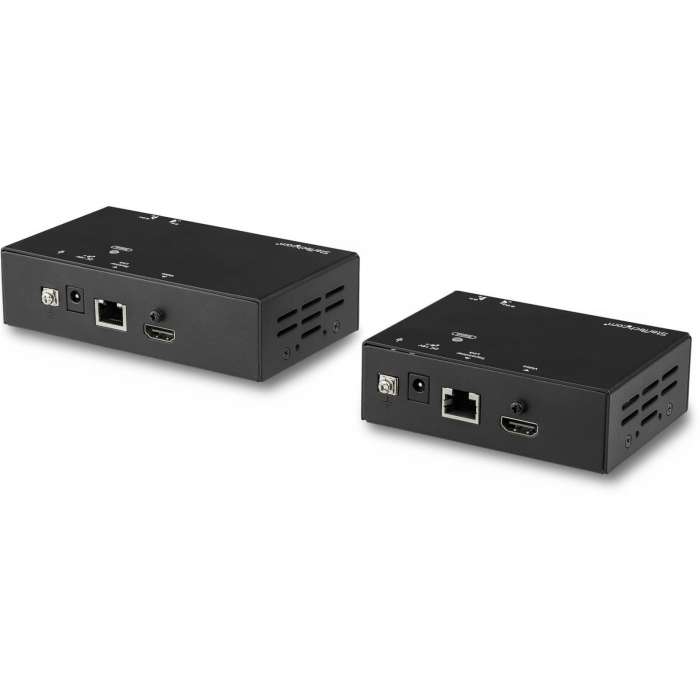

StarTech.com HDMI Over CAT6 Extender
Delivered in 2-4 business days
- Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 35 m (115 ft.) and 1080p 60Hz resolutions at up to 70 m (230 ft.)
- Hassle-free setup with video and power over a single CAT5e or CAT6 cable
- Sleek professional installation with optional mounting hardware included
- Remotely control your video source from the location of your remote display, with support for IR extension
- Supports HDR for expanded contrast ratio and color accuracy
This HDMI® over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 70 m (230 ft.) away. Get 4K at 60Hz from 35 m (115 ft.) away This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source. With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging. Simplify your setup The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation. The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Desktop |
| Graphics Modes | 4K |
| HDMI In | Yes |
| HDMI Out | Yes |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121HDBT20S |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Output Devices Supported | 1 |
| Package Contents |
|
| Product Name | HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.) |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 11.50" |
| Receiver Height | 1" |
| Receiver Weight (Approximate) | 3.53 lb |
| Receiver Width | 3" |
| TAA Compliant | Yes |
| Transmitter Depth | 11.50" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 3.53 lb |
| Transmitter Width | 3" |
| Twisted Pair Cable Standard | Category 6 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 3.4600 |
| UPC | 065030877862 |
| MPN | ST121HDBT20S |
