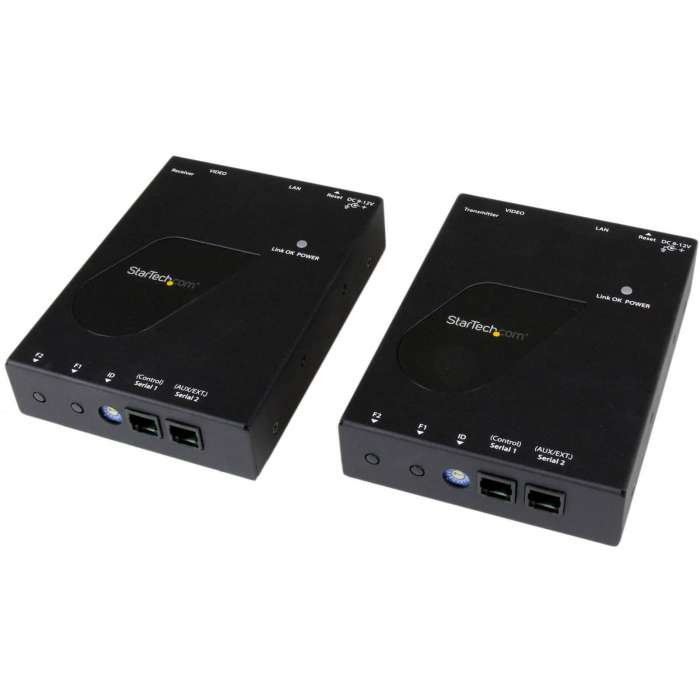

StarTech.com HDMI over IP Distribution Kit with Video Wall Support
Delivered in 2-4 business days
- Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
- Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
- Tidy, professional installation using the included mounting hardware
- Connect using a Gigabit LAN network
- Easy point-to-point or point-to-multipoint setup
- Extend HDMI using existing network infrastructure
- Supports video resolutions up to 1920x1080 (1080p)
This HDMI over IP receiver works with the HDMI Over IP Extender Kit (ST12MHDLAN2K, sold separately) and an Ethernet switch (sold separately), to receive HDMI video over your local area network (LAN) in remote locations, using Cat5e or Cat6 cabling. You can use additional receivers to distribute the HDMI signal to multiple locations or combine your remote displays to create a video wall. Highly Scalable In a point-to-multipoint (one source to many screens) or multipoint-to-multipoint (many sources to many screens) configuration, you can output video to over 100 additional displays. Each display requires a receiver. Remote control of serial devices is supported through RS232 extension. Resolutions Up to 1080p, with Audio With support for video resolution up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter. Mobile Control with Included App The kit includes an easy-to-use online app to manage your IP video distribution. The app is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser for your desktop. Hassle-Free Installation The HDMI over IP receiver includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables. ST12MHDLAN2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Graphics Modes | WUXGA |
| HDMI Out | Yes |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST12MHDLAN |
| Maximum Operating Distance | 330 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Output Devices Supported | 1 |
| Number of USB Ports | 4 |
| Package Contents |
|
| Product Name | HDMI Video Over IP Gigabit LAN Ethernet Extender Kit - 1080p |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 5.10" |
| Receiver Height | 1.10" |
| Receiver Weight (Approximate) | 2.07 lb |
| Receiver Width | 3.80" |
| TAA Compliant | Yes |
| Transmitter Depth | 5.10" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approximate) | 2.07 lb |
| Transmitter Width | 3.80" |
| Twisted Pair Cable Standard | Category 6 |
| USB | Yes |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 4.4500 |
| UPC | 065030850759 |
| MPN | ST12MHDLAN |
