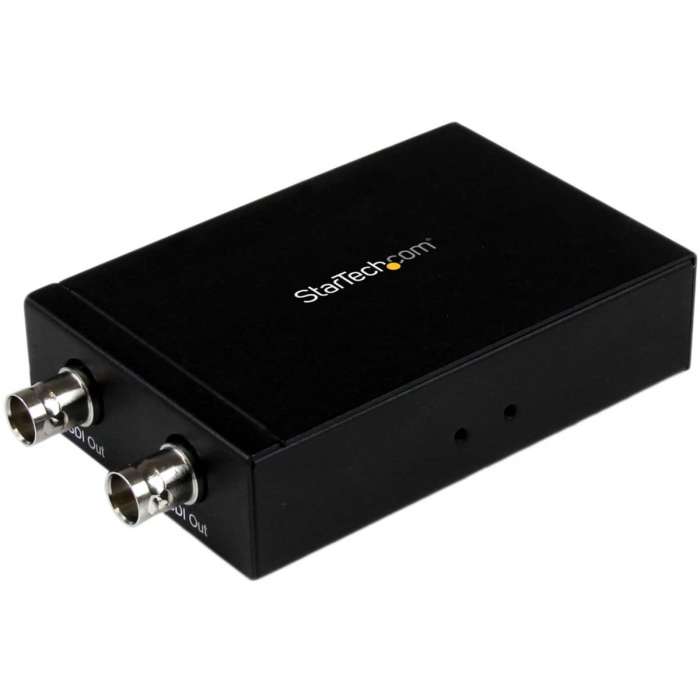

StarTech.com HDMI to SDI Converter - HDMI to 3G SDI Adapter with Dual SDI Output

SKU
STCHD2SDI
$194.21 /EACH

Delivered in 2-4 business days

Out of stock
  • Dual 3G SDI output ports
  • Extends HDMI signals up to 755ft (230m) over 3G SDI
  • Supports video resolutions up to 1080p
  • Plug-and-play HDMI to SDI conversion
  • Pre-installed mounting brackets

The HD2SDI HDMI to dualSDI converter enables you to turn your HDMI audio/video signalinto two3G SDI video outputs. The 3G SDI video outputs can then be individually extended up to 755ft (230m) over standard coaxial cable for large scale HD-SDIvideo distribution. With dual SDIoutputs, you can connect your HDMI video source toa local SDI displayand outputan additional SDI signal into your broadcasting equipment, providing a scalable solution for anySDIbroadcasting application that requires an HDMI input. To ensure you maintainperfect high-definition video quality, theHD-SDI convertersupports resolutions up to1080p, which lets you convert HDMI to SDI withoutsacrificing video quality. For hassle-free installation, the HDMI to SDI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation. The HD2SDI isbacked by a StarTech.com 2-year warranty and free lifetime technical support.


Product TypeSignal Converter
FunctionsVideo Conversion
Maximum Resolution1920 x 1200
Maximum Frame Rate60 fps
Maximum Data Transfer Rate11.88 Gbit/s
Digital SignalYes
HDMIYes
Number of HDMI Inputs1
Component VideoYes
Component Video Connector TypeBNC
SDIYes
Number of SDI Outputs2
Product ColorBlack
Form FactorRack-mountable
Height1"
Width2.8"
Length3.9"
Weight (Approximate)0.44 lb
Package Contents
  • HDMI to SDI Converter - HDMI to 3G SDI Adapter with Dual SDI Output
  • 1 x Mounting bracket assembly (attached)
  • 1 x Universal Power Adapter (NA/UK/EU/)
  • 1 x Instruction Manual
System Requirements
  • The converter is intended for distribution of original content.
  • Digitally encrypted HDMI sources will not be converted.
Certifications & Standards
  • CE
  • FCC
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of OriginChina
Limited Warranty2 Year
Download PDF File
BrandStarTech.com
Weight (lbs)1.0500
UPC065030854979
MPNHD2SDI
