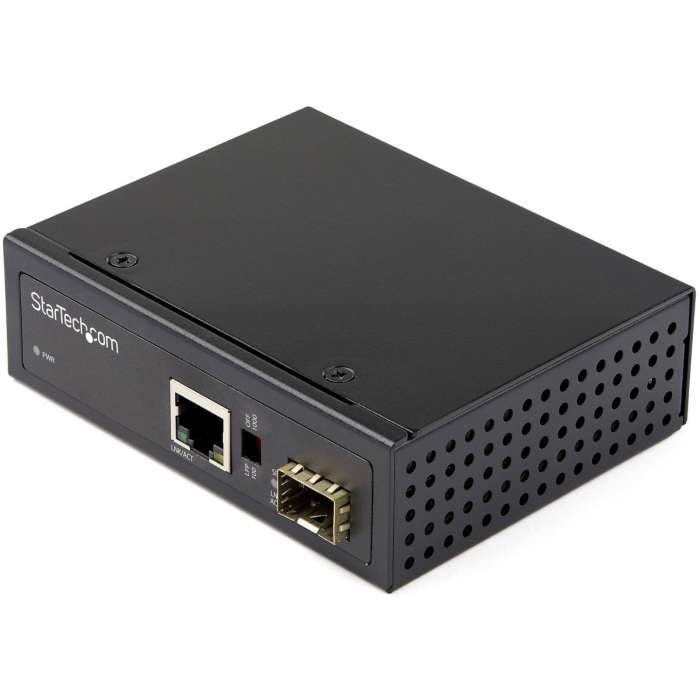

StarTech.com Industrial Fiber to Ethernet Media Converter
Delivered in 2-4 business days
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C - Vibration, shock & free fall rated - Rugged IP-30 aluminum housing
- TECH SPECS: 1 Gbps - 12V-56VDC - Single Mode SMF & Multi-Mode MMF Fiber - 16K Jumbo Frames - LFP - IP-30 Housing - DIN or Wall Mountable - Terminal Block and/or Barrel Adapter for power redundancy
An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Depth | 4.1" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Single-mode |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 1.3" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Number of Network (RJ-45) Ports | 1 |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Package Contents |
|
| Plug/Connector Type | Terminal Block (4 Wire) |
| Plug/Connector Type | Type N |
| Power Consumption | 3 W |
| Power Source | Power Supply |
| Product Name | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 1 |
| Weight (Approximate) | 5.10 oz |
| Width | 3.2" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.8000 |
| UPC | 065030889612 |
| MPN | IMC1GSFP |
