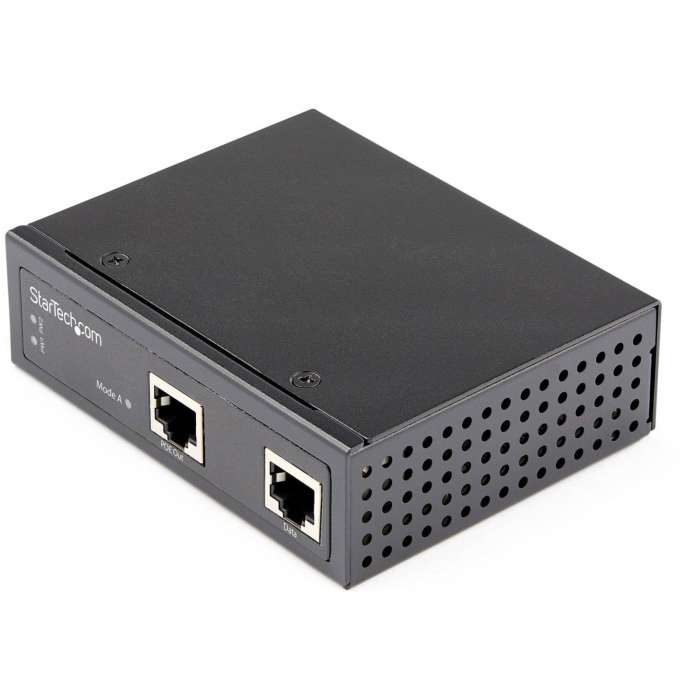

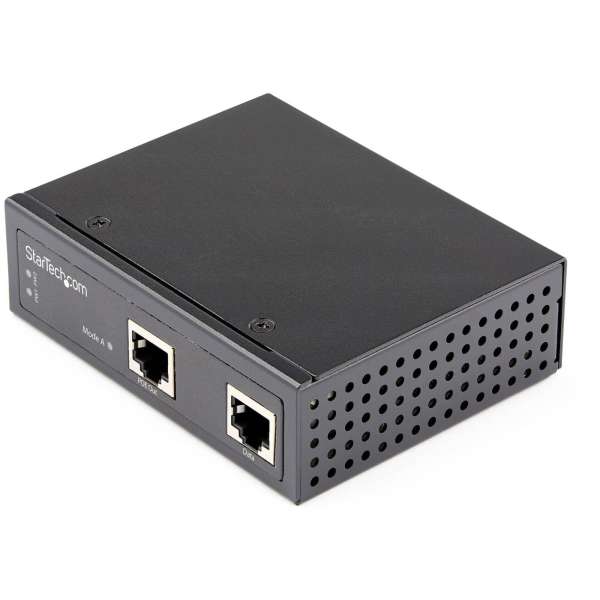

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C

SKU
STCPOEINJ30W
$130.19 /EACH

Delivered in 2-4 business days

Out of stock
  • 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC input
  • IEEE 802.3af / IEEE 802.3at (30W)
  • 10/100/1000 Mbps auto negotiation
  • Link fault passthrough (LFP)

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN 60068-2-6
  • EN 60068-2-32
  • MET (UL) 60950-1
  • EN60950-1
Country of OriginTaiwan
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDIN Rail/Wall Mountable
Input Ports1 x Fast Ethernet
Input Voltage56 V DC
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberPOEINJ30W
Output Ports1 x PoE+
Package Contents
  • POEINJ30W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block to Barrel Power Connector Adapter
  • Terminal Block
Product ModelPOEINJ30W
Product NamePOEINJ30W PoE Injector
Product TypePoE Injector
Protection TypeOverload Protection
Download PDF File
BrandStarTech.com
Weight (lbs)1.3000
UPC065030891363
MPNPOEINJ30W
