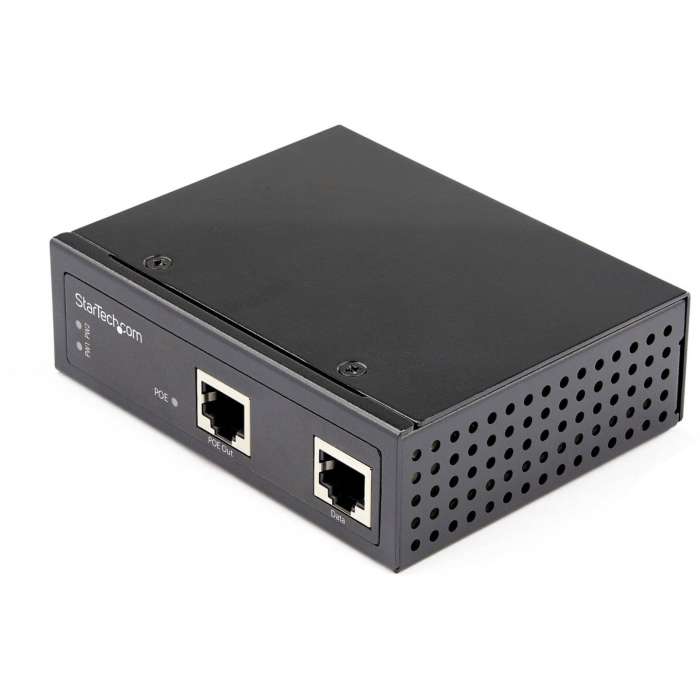

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

SKU
STCPOEINJ1G90W
$253.08 /EACH

Delivered in 2-4 business days

Out of stock
  • WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS
  • 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
  • TECH SPECS: 1 Gbps
  • 48V-56VDC Power Input
  • IEEE 802.3af
  • IEEE 802.3at

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. Flexible Configurations for a Variety of Applications Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications. 90 Watt Power Budget As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3bt
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN60950-1
  • IP-30
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
Country of OriginTaiwan
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDIN Rail/Wall Mountable
Height4.1"
Input Ports1 x Gigabit Ethernet
Input Voltage56 V DC
Length3.2"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberPOEINJ1G90W
Output Ports1 x PoE+
Package Contents
  • POEINJ1G90W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
Product ModelPOEINJ1G90W
Product NamePOEINJ1G90W PoE Injector
Product TypePoE Injector
Protection TypeSurge Protection
Weight (Approximate)6.14 oz
Width1.3"
Download PDF File
BrandStarTech.com
Weight (lbs)0.8500
UPC065030889568
MPNPOEINJ1G90W
