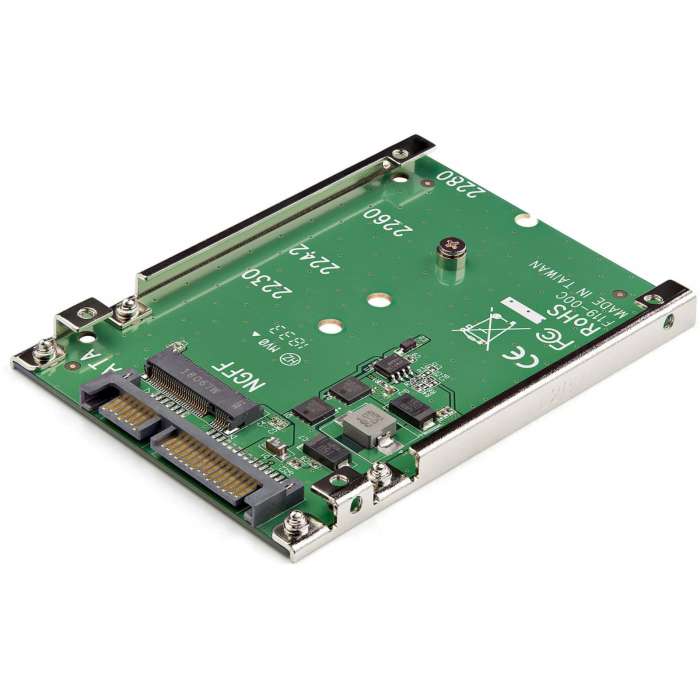

StarTech.com M.2 SATA SSD to 2.5in SATA Adapter Converter

SKU
STCSAT32M225
$39.51 /EACH

Delivered in 2-4 business days

Out of stock
  • Open-frame steel mounting bracket
  • Supports 7mm or larger 2.5"" SATA bays
  • Supports B key M.2 SSDs
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • 2.5in SATA form factor housing
  • Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
  • Not compatible with M.2 NVMe or AHCI PCI-Express SSDs

Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter. Boost System Performance Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives. Hassle-Free Setup This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation. Open-Frame Design The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation. SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.


Packaged Quantity1
Product TypeM.2 to SATA Adapter
Product ColorGreen
Height0.3"
Width2.8"
Length3.9"
Weight (Approximate)1.27 oz
Package Contents
  • M.2 SATA SSD to 2.5in SATA Adapter Converter
  • 1 x Mounting Screw Kit
  • 1 x Installation Manual
Additional Information
  • Drive Connectors
1 - M.2 (SATA, B-Key, NGFF)
  • Host Connectors
  • 1 - SATA Data & Power Combo (7+15 pin)
  • Interface
  • SATA
  • Number of Drives
  • 1
  • Compatible Drive Types
  • M.2 (SATA, B-Key, NGFF)
  • Drive Installation
  • Fixed
  • Supported Drive Height(s)
  • 2230; 2242; 2260; 2280
    Compatibility
    • Supports 7mm or larger 2.5" SATA bays
    • Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
    Certifications & Standards
    • CE
    • FCC
    Environmentally FriendlyYes
    Environmental Certification
    • RoHS
    • WEEE
    • REACH
    Country of OriginTaiwan
    TAA CompliantYes
    Limited Warranty2 Year
    Download PDF File
    BrandStarTech.com
    Weight (lbs)0.2000
    UPC065030855600
    MPNSAT32M225
