StarTech.com MSA Uncoded SFP Transceiver Module, 1000BASE-BX, 1GbE Gigabit Ethernet BiDi Fiber (SMF), MSA Uncoded Transceiver, 1000BASE-BX WDM SFP+ (1Gbps)

SKU
INGM1DH566
$93.27 /EACH

Delivered in 2-4 business days

Out of stock
  • WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules.
  • LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24..
  • TECHNICAL SPECS: 1000BASE-BX
    • 1Gbps
      • 1G Bi-Directional Downstream
        • Single Mode (SMF)
          • LC Connector
            • 1490nmTx/1310nmRx
              • Digital Diagnostic Monitoring (DDM)
                • Distances up to 10km (6.2mi).
                • INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two..
                • MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity .

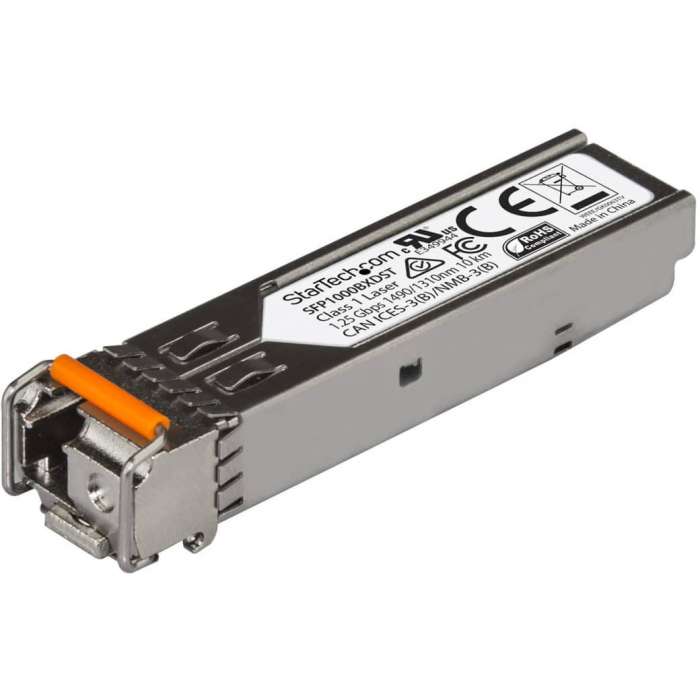

The SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling. Technical Specifications:; Wavelength: 1490nmTx/1310nmRx; Maximum Data Transfer Rate: 1.25 Gbps; Type: Single Mode Fiber; Connection Type: LC Connector; Maximum Transfer Distance: 10 km (6.2 mi); Power Consumption: Less than 1 Watt; DDM: Yes. This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs. All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.


Application/UsageData Networking
Application/UsageOptical Network
Brand NameStarTech.com
CompatibilityMSA Compliant
Connector Type (Interfaces/Ports)LC
Country of OriginChina
Depth2.2"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet Technology1.25 Gigabit Ethernet
Fiber Mode SupportedSingle-mode
Form FactorHot-swappable
Height0.5"
Interfaces/Ports Details (Interfaces/Ports)1 x LC Duplex 1000Base-BX Network
Manufacturer Part NumberSFP1000BXDST
ManufacturerStarTech.com
Media Type SupportedOptical Fiber
Network Technology1000Base-BX
Packaged Quantity1
Product NameSFP (mini-GBIC) Module
Product TypeSFP (mini-GBIC)
Total Number of Ports (Interfaces/Ports)1
Weight (Approximate)0.04 lb
Width0.6"
Download PDF File
BrandStarTech.com
Weight (lbs)0.1000
UPC065030873505
MPNSFP1000BXDST
