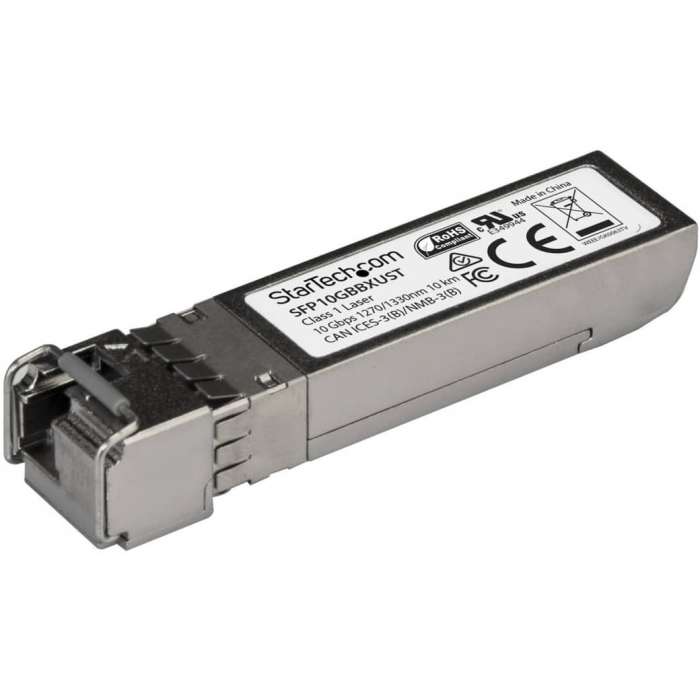

StarTech.com MSA Uncoded SFP+ Transceiver Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF)

SKU
STCSFP10GBBXUST
$465.27 /EACH

Delivered in 2-4 business days

Out of stock
  • INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
  • TECHNICAL SPECS: 10GBASE-BX - 10Gbps - 10G Bi-Directional Upstream - Single Mode (SMF) - LC Connector - 1270nmTx/1330nmRx - Digital Diagnostic Monitoring (DDM) - Distances up to 10km (6.2mi).
  • LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24.
  • WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

The SFP10GBBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBBXDST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling. Technical Specifications: Wavelength: 1270nmTx/1330nmRx Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) Power Consumption: Less than 1 Watt DDM: Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.


Application/UsageData Networking
Application/UsageOptical Network
Brand NameStarTech.com
CompatibilityMSA Compliant
Connector TypeLC
Country of OriginChina
Depth2.3"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet Technology10 Gigabit Ethernet
Fiber Mode SupportedSingle-mode
Form FactorHot-swappable
Height0.5"
Interfaces/Ports Details1 x LC Duplex 10GBase-BX Network
Limited WarrantyLifetime
ManufacturerStarTech.com
Manufacturer Part NumberSFP10GBBXUST
Media Type SupportedOptical Fiber
Network Technology10GBase-BX
Packaged Quantity1
Product NameSFP+ Module
Product TypeSFP+
Total Number of Ports1
Weight (Approximate)0.05 lb
Width0.5"
Download PDF File
BrandStarTech.com
Weight (lbs)15.0000
UPC065030873406
MPNSFP10GBBXUST
