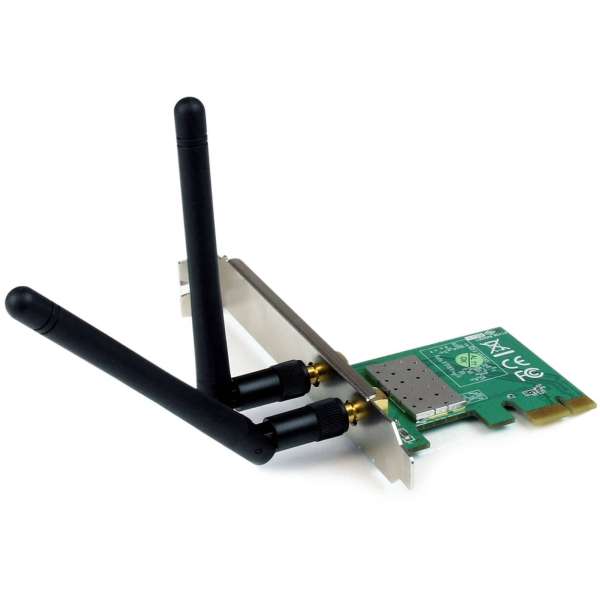

StarTech.com PCI Express Wireless Adapter 300 Mbps PCIe 802.11 b/g/n Network Adapter Card 2T2R 2.2 dBi

SKU
STCPEX300WN2X2
$47.35 /EACH

Delivered in 2-4 business days

In stock
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
  • Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
  • Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
  • Supported security features: WEP (64-128-bit), WPA, WPA2, WPS
  • Support for WMM/WMM-PS Quality of Service (QoS)
  • Infrastructure and Ad-Hoc network modes support
  • Dual detachable 2dBi antennas
  • Includes Low Profile/Half-Height installation bracket

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range. Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS. This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.


Packaged Quantity1
Wi-Fi GenerationWi-Fi 4
Wireless LAN StandardIEEE 802.11n
ISM BandYes
UNII BandNo
ISM Minimum Frequency2.40 GHz
ISM Maximum Frequency2.48 GHz
Number of Antennas2
Antenna Gain (Isotropic)2 dBi
Antenna ConnectorRP-SMA Connector
Wireless Transmission Speed300 Mbit/s
Wireless Security
  • WEP 64-128-bit
  • WPA
  • WPA2
  • WPS
  • TKIP
  • AES
Form FactorPlug-in Card
Height0.7"
Width1.9"
Depth3"
Length3"
Weight (Approximate)1.30 oz
Package Contents
  • PCI Express Wireless Networking Card
  • 2 x Antenna
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
System Requirements
  • Windows XP (64-bit)
  • Windows Server 2003 (32/64-bit)
  • Windows Server 2008 R2
  • Windows Vista (32/64-bit)
  • Windows 7 (32/64-bit)
  • Windows 8 (32/64-bit)
  • Windows 10
  • Linux 2.6.32 or later
Device SupportedDesktop Computer
Certifications & Standards
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • FCC
  • CE
Platform SupportedPC
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of OriginTaiwan
TAA CompliantYes
Limited Warranty2 Year
Download PDF File
BrandStarTech.com
Weight (lbs)0.3500
UPC065030844482
MPNPEX300WN2X2
