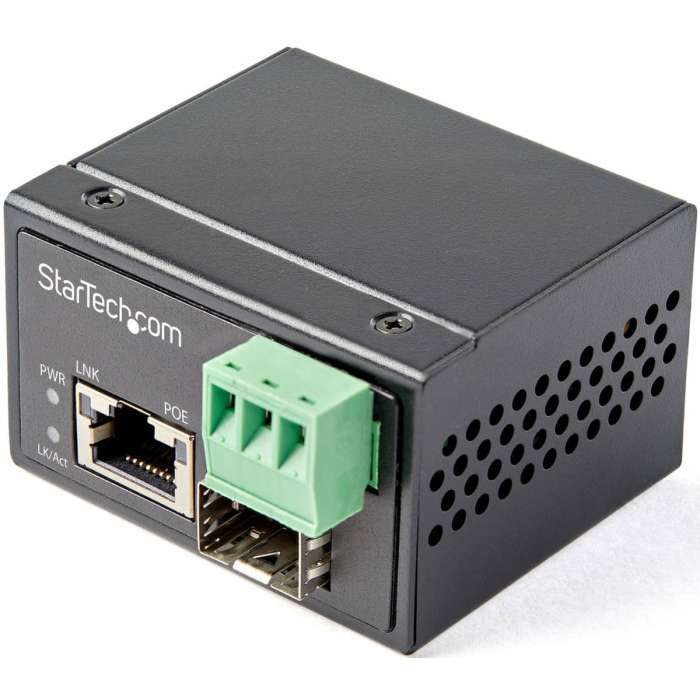

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W

SKU
STCIMC1GSFP30W
$246.17 /EACH

Delivered in 2-4 business days

Out of stock
  • COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
  • TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included
  • ROBUST DESIGN: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C | 2 yr warr
  • OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
  • FLEXIBLE POWER INPUT: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances. Designed for Small Spaces & Harsh Environments At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURESTORAGE TEMPERATURE 40°C to 75°C -40°C to 85°C 104°F to 167°F104°F to 185°FUp to 30 Watts of Power for Connected Devices 30 watts of available support a wide range of devices such as: Surveillance Cameras Wireless Access Points Locks & Sensors Lighting Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Industrial IoT and Bringing Connectivity Outside of the Data Center Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment. The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth2.3"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP (mini-GBIC)
Fiber Mode SupportedMulti-mode
Fiber Mode SupportedSingle-mode
Form FactorDIN Rail Mountable
Form FactorWall Mountable
Height1.9"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberIMC1GSFP30W
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Network Technology1000Base-T
Network Technology1000Base-TX
Number of PoE (RJ-45) Ports1
Number of SFP Slots1
Number of Total Expansion Slots1
Package Contents
  • Transceiver/Media Converter
  • Terminal Block to Barrel Power Connector Adapter
  • Quick-Start Guide
  • Mounting Hardware
  • Terminal Block
Plug/Connector TypeTerminal Block (3 Wire)
Plug/Connector TypeType N
Power Consumption30 W
Power SourcePoE+
Product NameTransceiver/Media Converter
Product TypeTransceiver/Media Converter
Total Number of Ports1
Weight (Approximate)2.80 oz
Width1.4"
Download PDF File
BrandStarTech.com
Weight (lbs)0.5000
UPC065030889575
MPNIMC1GSFP30W
