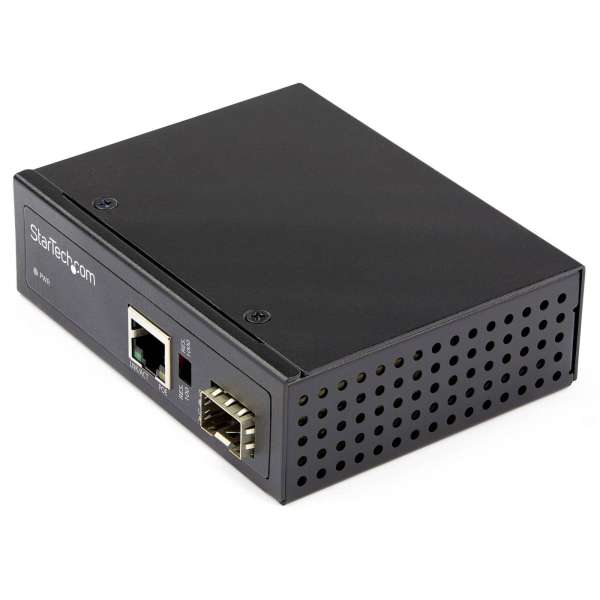

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W

SKU
STCIMC1GSFP60W
$257.97 /EACH

Delivered in 2-4 business days

Out of stock
  • EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
  • TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (60W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included | 2 yr warr
  • ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C
  • OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
  • FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances. Designed for Harsh Environments This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F Up to 60 Watts of Power for Connected Devices 60 watts of available support a wide range of PD devices such as: Pan-and-Tilt Cameras Lighting Cameras Sensors WiFi Access Points Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth4.1"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP (mini-GBIC)
Fiber Mode SupportedMulti-mode
Fiber Mode SupportedSingle-mode
Form FactorDIN Rail Mountable
Form FactorWall Mountable
Height1.3"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberIMC1GSFP60W
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Network Technology1000Base-T
Network Technology1000Base-TX
Network Technology100Base-T
Network Technology100Base-TX
Number of PoE (RJ-45) Ports1
Number of SFP Slots1
Number of Total Expansion Slots1
Package Contents
  • Transceiver/Media Converter
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block to Barrel Power Connector Adapter
  • Terminal Block
Plug/Connector TypeTerminal Block (3 Wire)
Plug/Connector TypeType N
Power Consumption60 W
Power SourcePoE+
Product NameTransceiver/Media Converter
Product TypeTransceiver/Media Converter
Total Number of Ports1
Weight (Approximate)5.40 oz
Width3.2"
Download PDF File
BrandStarTech.com
Weight (lbs)0.8500
UPC065030889636
MPNIMC1GSFP60W
