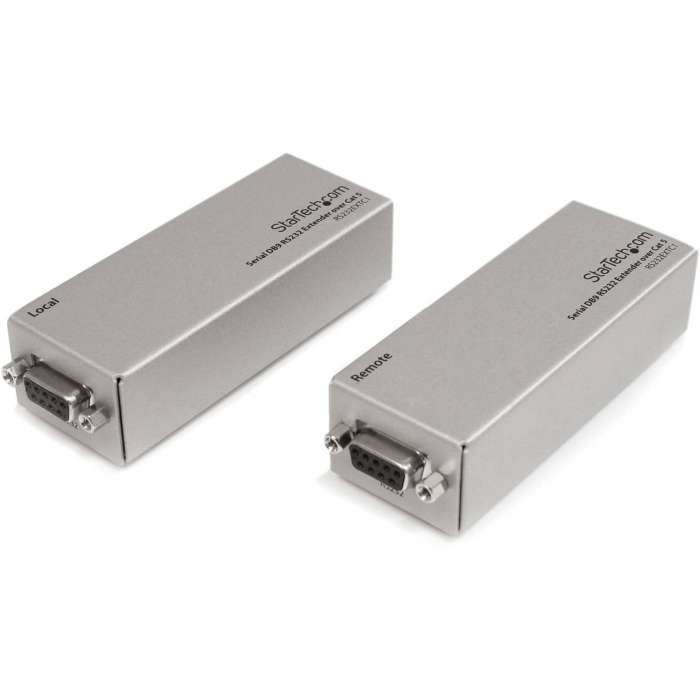

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
Delivered in 2-4 business days
- Extend RS232 up to 1000m / 3300ft
- Data transfer rates of up to 230Kbps
- Compatible with all RS232 communications
- Employ existing Cat 5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
- Supports full-duplex data communication
- Compact design
- No driver software required for easy Plug-and-Play installation
The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Additional Information |
|
|---|---|
| Brand Name | StarTech.com |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Height | 0.9" |
| Input Voltage | 230 V AC |
| Length | 3.6" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RS232EXTC1 |
| Maximum Data Transfer Rate | 230 kB/s |
| Maximum Extended Range | 3280.84 ft |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Product Name | Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) |
| Product Type | Serial Extender |
| TAA Compliant | Yes |
| Width | 1.3" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.3000 |
| UPC | 065030841863 |
| MPN | RS232EXTC1 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
