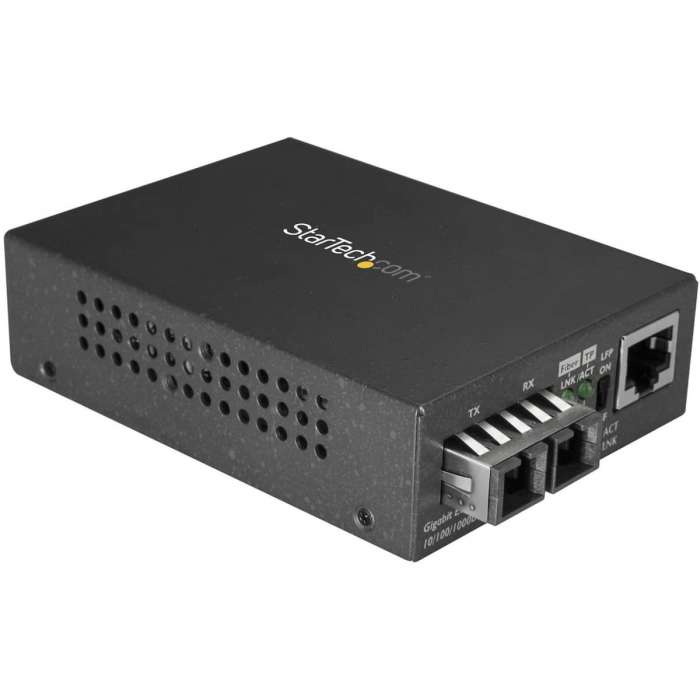

StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km

SKU
STCMCMGBSCSM10
$117.32 /EACH

Delivered in 2-4 business days

Out of stock
  • Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. Extend your GbE network cost-effectively The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth2.8"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Fiber Mode SupportedSingle-mode
Fiber Optic Wavelength1310 nm
Form FactorWall Mountable
Height1"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberMCMGBSCSM10
Maximum Distance Supported6.21 Mile
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Network Technology1000Base-LX
Network Technology1000Base-T
Network Technology100Base-LX
Network Technology10Base-T
Number of Network (RJ-45) Ports1
Number of SC Ports1
Package Contents
  • Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
  • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
  • 1 x Quick-start Guide
Packaged Quantity1
Plug/Connector TypeType N
Power Consumption10 W
Power SourceAC Adapter
Product NameGigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Product TypeTransceiver/Media Converter
SC Port TypeDuplex
TAA CompliantYes
Total Number of Ports2
Weight (Approximate)6.90 oz
Width4.1"
Download PDF File
BrandStarTech.com
Weight (lbs)1.1600
UPC065030878241
MPNMCMGBSCSM10
