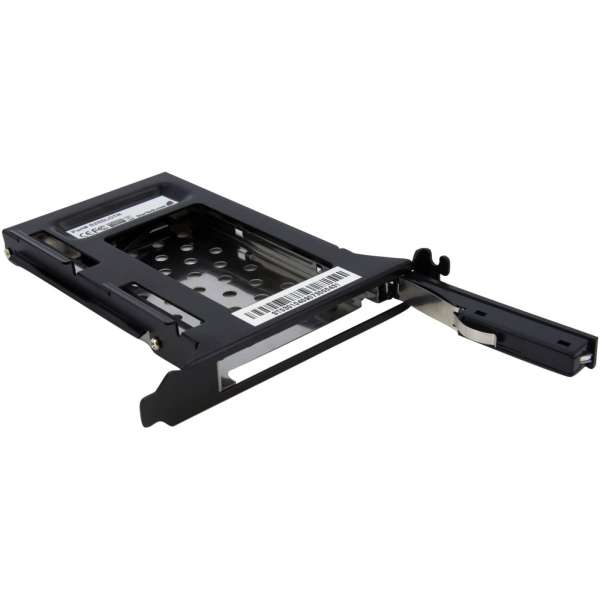

StarTech.com 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

SKU
STCS25SLOTR
$55.43 /EACH

Delivered in 2-4 business days

In stock
  • Fits a 2.5" SATA drive into a rear full profile expansion card slot
  • Trayless design: drive is not mounted into a tray or enclosure
  • Latching drive door
  • 50,000+ insertion rating
  • Vented aluminum and steel construction
  • Door mounted Power/Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case. Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.


Brand NameStarTech.com
Controller TypeSerial ATA/600
Country of OriginTaiwan
Depth5.7"
Drive InterfaceSATA/600
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorInternal
Height4.7"
Host InterfaceSerial ATA/600
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberS25SLOTR
Number of 2.5" Bays1
Number of Hard Drives InstalledNo
Number of Hard Drives Supported1
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported1
Number of Total Expansion Bays1
Package Contents
  • 2.5in SATA Removable HDD Bay for PC Slot
  • 1 x 20in SATA Cable
  • 1 x LP4 SATA Breakout Cable
  • 1 x Hard Drive Protective Film
  • 1 x Mounting Screws
  • 1 x Instruction Manual
Packaged Quantity1
Product Name2.5in SATA Removable HDD Bay for PC Slot
Product TypeDrive Slot Adapter
Weight (Approximate)5.90 oz
Width0.8"
Wireless LANNo
Download PDF File
BrandStarTech.com
Weight (lbs)0.5200
UPC065030836074
MPNS25SLOTR
