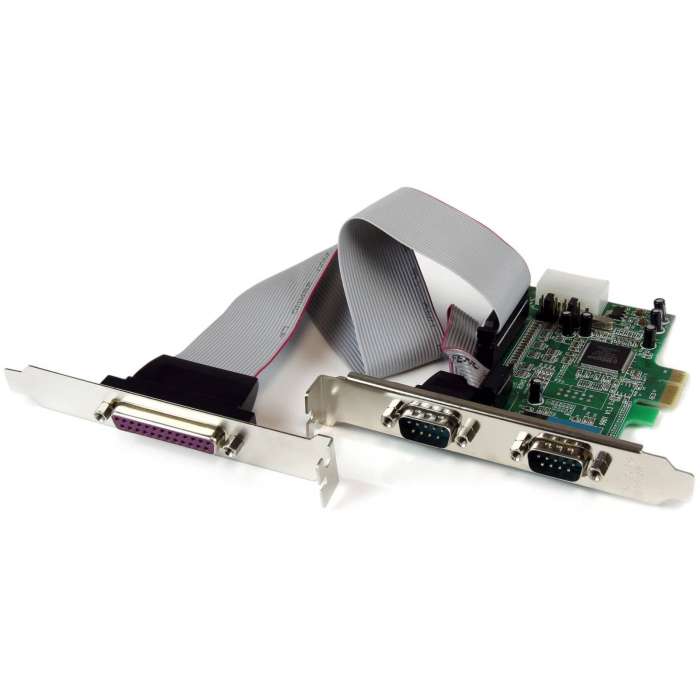

StarTech.com 2S1P PCIe Parallel Serial Combo Card

SKU
STCPEX2S5531P
$59.37 /EACH

Delivered in 2-4 business days

Out of stock
  • Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
  • One parallel port with data transfer rate up to 1.5 Mbps
  • Compliant with PCI Express base specifications revision 1.0a
  • 128-byte deep FIFO per transmitter and receiver
  • Configurable in 5V, 12V, and RI (non-powered) modes
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band flow control using programmable Xon/Xoff in both directions

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. This product is a replacement for our PEX2S5521P card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity1
Host InterfacePCI Express x1
Data Transfer Rate
  • 1.5MB/s Parallel Port
  • 460.8kB/s Serial Port
UART Type16550
Platform Supported
  • PC
  • Mac
  • Linux
Number of Parallel Ports (External)1
Number of Serial Ports (External)2
Form FactorPlug-in Card
Card HeightDual-profile
Height0.8"
Width4.7"
Length4.1"
Weight (Approximate)4 oz
Package Contents
  • 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Parallel Port (with Ribbon Cable)
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual
Additional Information
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 - 10.6
  • Linux
  • Environmentally FriendlyYes
    Environmental Certification
    • RoHS
    • REACH
    • WEEE
    Country of OriginTaiwan
    TAA CompliantYes
    Limited Warranty2 Year
    Download PDF File
    BrandStarTech.com
    Weight (lbs)0.4500
    UPC065030841764
    MPNPEX2S5531P
    Prop65 WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
