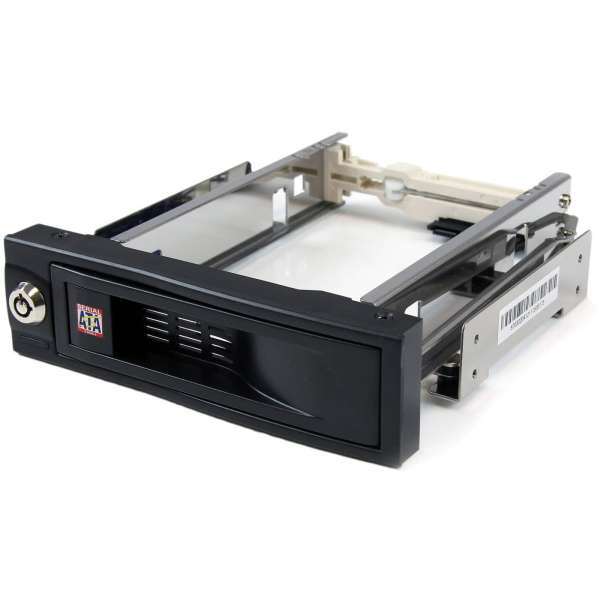

StarTech.com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay

SKU
STCHSB100SATBK
$43.57 /EACH
In stock

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes. The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.


Brand NameStarTech.com
Compatible Drive Bay Width5.25"
Controller TypeSerial ATA/600
Country of OriginChina
Depth7.2"
Drive InterfaceSATA/600
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorInternal
Height1.7"
Host InterfaceSerial ATA/600
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberHSB100SATBK
Number of 3.5" Bays1
Number of Hard Drives Supported1
Number of Total Expansion Bays1
Package Contents
  • 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
  • 2 x Keys
  • 1 x Screw Kit
  • 1 x Instruction Manual
Packaged Quantity1
Product ModelHSB100SATBK
Product Name5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
Product TypeDrive Bay Adapter
Weight (Approximate)9.21 oz
Width5.9"
Download PDF File
BrandStarTech.com
Weight (lbs)0.800000
UPC065030821360
MPNHSB100SATBK
