StarTech.com Parallel/serial combo card

SKU
STCPCI2S1P
main product photo
$50.14 /EACH

Delivered in 2-4 business days

Out of stock
Notify me when this product is in stock
  • Two 16C550 serial ports with data transfer up to 115.2 Kbits/sec
  • One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec
  • Includes optional low profile/half-height mounting bracket
  • Parallel port supports EPP, ECP, SPP and BPP
  • IRQ sharing eliminates conflicts between multiple cards
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Cables & Adapters

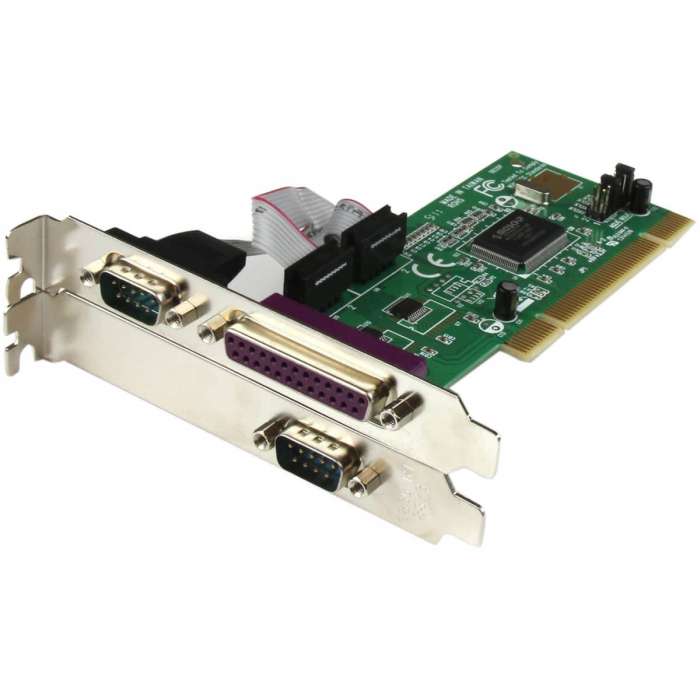

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot. Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy. The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.


Packaged Quantity1
Host InterfacePCI
Data Transfer RateUp to 430kB/s Serial Port
UART Type16550
Parallel Port ModesEPP/ECP
Number of Parallel Ports (External)1
Number of Serial Ports (External)1
Form FactorPlug-in Card
Card HeightLow-profile
Height4.7"
Width0.8"
Length4.7"
Weight (Approximate)2.30 oz
Package Contents
  • 2S1P PCI Serial Parallel Combo Card with 16550 UART
  • 1 x DB9 Ribbon Cable
  • 3 x Low Profile Brackets
  • 1 x Driver CD
  • 1 x Instruction Manual
Additional Information
  • Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application
  • All three ports share only one IRQ, minimizing system resources required for the card
  • Easy to install and use with full step-by-step instruction providing a hassle free serial solution
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of OriginTaiwan
TAA CompliantYes
Limited WarrantyLifetime
Download PDF File
BrandStarTech.com
Weight (lbs)1.0000
UPC065030781022
MPNPCI2S1P
