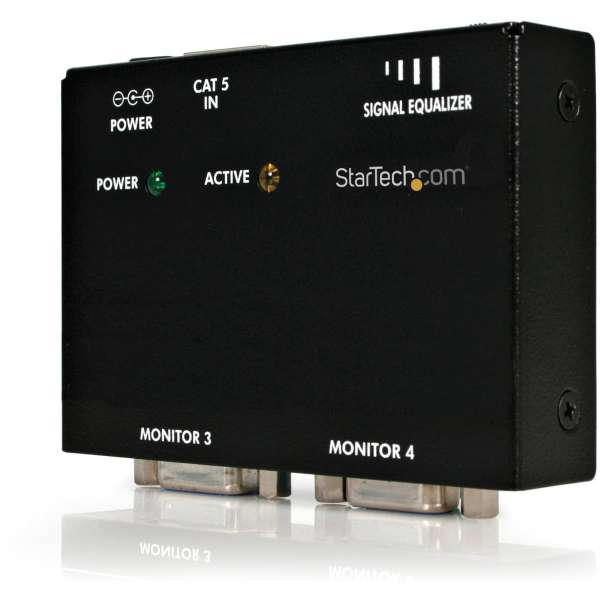

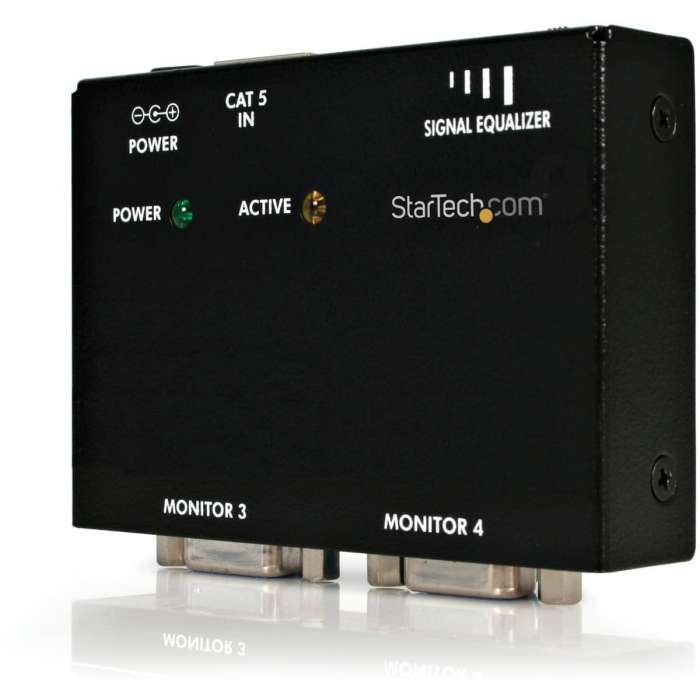

StarTech.com VGA over CAT5 remote receiver for video extender

SKU
STCST121R
$101.22 /EACH

Delivered in 2-4 business days

In stock
  • Extends video cables by up to 500 ft. (150m)
  • Pure hardware design, no software or drivers required
  • Included mounting brackets
  • Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission

The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays. From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet). A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Brand NameStarTech.com
Connectivity TechnologyWired
Country of OriginTaiwan
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Graphics ModesVGA
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberST121R
Maximum Operating Distance492.13 ft
Maximum Video Resolution1024 x 768
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
Number of Output Devices Supported2
Number of VGA Outputs2
Package Contents
  • VGA Over CAT5 UTP Receiver
  • 1 x 9V Power Adapter
  • 1 x Instruction Manual
Product NameVGA Video Extender Remote Receiver over Cat 5
Product TypeVideo Extender Receiver
Receiver Depth2.60"
Receiver Height0.80"
Receiver Weight (Approximate)5.93 oz
Receiver Width3.30"
TAA CompliantYes
Twisted Pair Cable StandardCategory 5
VGA OutYes
Download PDF File
BrandStarTech.com
Weight (lbs)1.1500
UPC065030824323
MPNST121R
