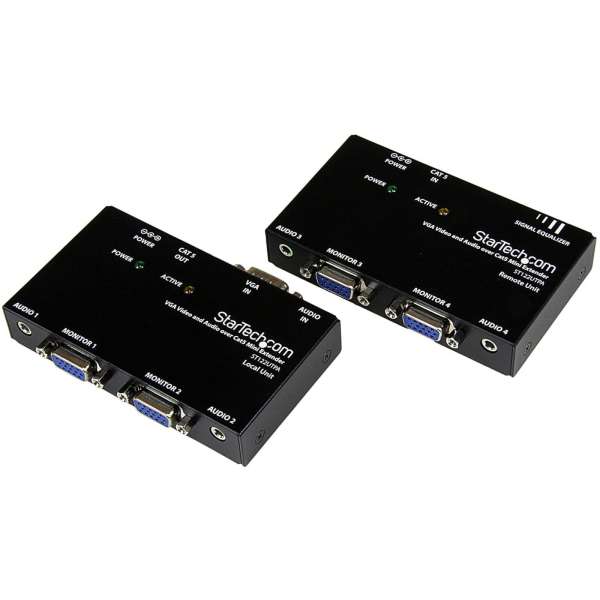

StarTech.com VGA Video Extender over Cat 5 with Audio
Delivered in 2-4 business days
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends VGA and analog audio up to 500ft / 150m
- Included mounting brackets
- Pure hardware design, no software or drivers required
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Desktop |
| Graphics Modes | XGA |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST122UTPA |
| Maximum Operating Distance | 150 ft |
| Maximum Video Resolution | 1440 x 900 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Output Devices Supported | 4 |
| Number of VGA Inputs | 2 |
| Number of VGA Outputs | 2 |
| Package Contents |
|
| Product Name | VGA Video Extender over Cat 5 with Audio |
| Product Type | Video Extender Transmitter/Receiver |
| TAA Compliant | Yes |
| Transmitter Depth | 2.40" |
| Transmitter Height | 0.80" |
| Transmitter Weight (Approximate) | 6.40 oz |
| Transmitter Width | 3.30" |
| Twisted Pair Cable Standard | Category 5 |
| VGA In | Yes |
| VGA Out | Yes |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 2.2000 |
| UPC | 065030811408 |
| MPN | ST122UTPA |
