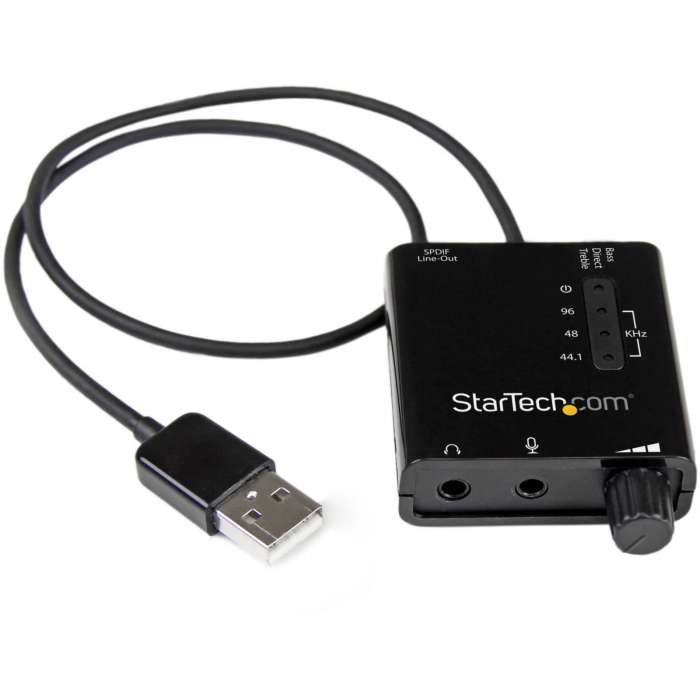

StarTech.com USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio

SKU
STCICUSBAUDIO2D
$53.78 /EACH

Delivered in 2-4 business days

In stock
  • 96KHz / 24-bit Hi-Fi USB Audio
  • S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support
  • 5.1 Surround Sound supported (Windows? only)
  • 3.5mm headphone/microphone ports
  • 4 position TRRS headset with Mic supported
  • Hardware volume knob and Bass/Treble boost EQ switch
  • LED sample rate indicators
  • 16in attached USB cable

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case. For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only). This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate. Please note that the microphone input is stereo only. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product TypeExternal Sound Box
Audio Processor ManufacturerVIA
Audio Processor ModelVT1630A
Host InterfaceUSB 2.0
Signal to Noise Ratio (SNR)91 dB
Maximum Playback Sampling Rate96 kHz
DAC Data Width24 bit
Sound Channels5.1
Platform Supported
  • PC
  • Mac
Product ColorBlack
Form FactorExternal
Height0.6"
Width1.8"
Thickness1.9"
Weight (Approximate)1.16 oz
Package Contents
  • USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
  • 1 x Software CD
  • 1 x Instruction Manual
System Requirements

Operating System(s):

  • Windows XP (32/64 bit)
  • Windows Vista (32/64 bit)
  • Windows 7 (32/64 bit)
  • Windows 8 (32/64 bit)
  • Windows Server 2008 R2
  • Windows Server 2003(32/64)
  • Mac OS 10.x (Tested up to 10.8)
  • Linux
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of OriginChina
Limited Warranty2 Year
Download PDF File
BrandStarTech.com
Weight (lbs)0.1800
UPC065030852296
MPNICUSBAUDIO2D
