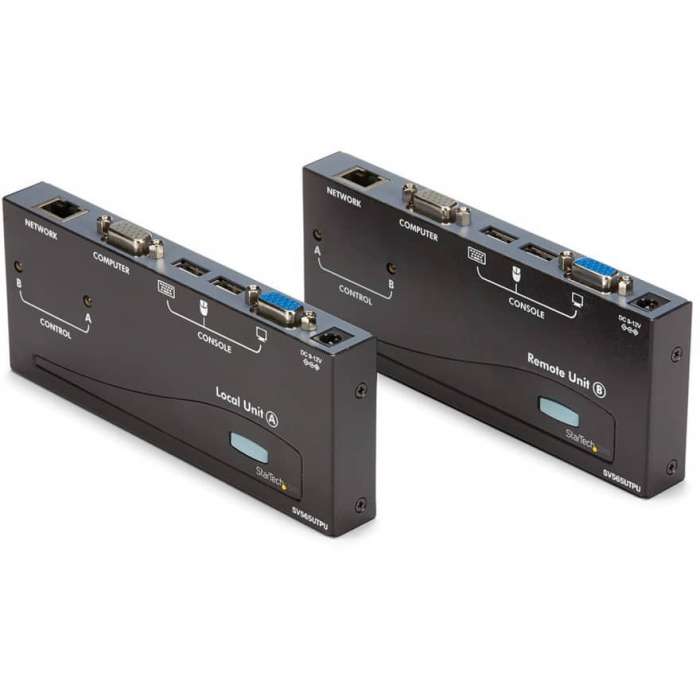

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
SKU
STCSV565UTPU
by StarTech.com
$273.98 /EACH
Delivered in 2-4 business days
In stock
- PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)
- Can be used with a single computer or connected to an existing KVM switch
- Easy installation using industry-standard UTP network cable
- Supports most combo keyboard and mouse sets (including Wireless)
- Intuitive hotkey commands
- Supports auto-switching between host and remote users or dedicated control
Category: KVM Switches
The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Desktop |
| Graphic Mode | XGA |
| Input Voltage Range | 110V AC to 240V AC |
| Input Voltage | 120 V AC |
| Input Voltage | 240 V AC |
| KVM Technology | Analog |
| Limited Warranty | 2 Year |
| Manufacturer Part Number | SV565UTPU |
| Manufacturer | StarTech.com |
| Maximum Operating Distance | 500 ft |
| Maximum Video Resolution | 1024 x 768 |
| Network (RJ-45) | Yes |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Remote Users Supported | 1 |
| Number of USB Ports | 4 |
| Number of VGA Ports | 4 |
| Package Contents |
|
| Power Consumption | 5.40 W |
| Product Color | Black |
| Product Model | SV565UTPU |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Product Type | KVM Console/Extender |
| Receiver Depth | 3" |
| Receiver Height | 0.80" |
| Receiver Weight (Approximate) | 1.35 lb |
| Receiver Width | 6.10" |
| TAA Compliant | Yes |
| Transmitter Depth | 3" |
| Transmitter Height | 0.80" |
| Transmitter Weight (Approximate) | 1.35 lb |
| Transmitter Width | 6.10" |
| USB | Yes |
| VGA | Yes |
| UNSPSC | 43211603 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 2.9000 |
| UPC | 065030832625 |
| MPN | SV565UTPU |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
