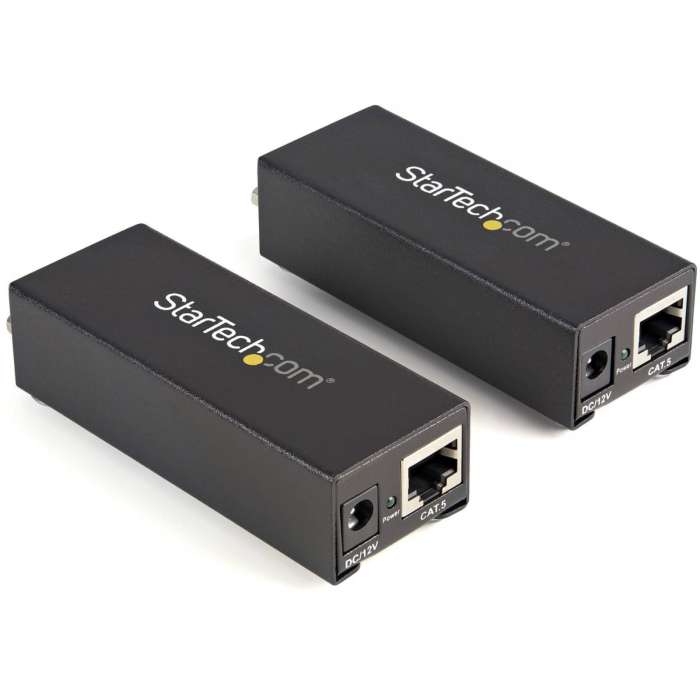

StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Delivered in 2-4 business days
- Extends video signal by up to 250 ft. (80m)
- Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
- Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
- Mounting bracket included
- Single power adapter can be connected at local or remote end of the extension
- Uses standard Cat 5 or better cabling
- Kit consists of 1 Base unit and 1 Remote unit
- Pure hardware design - no software or drivers required
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphics Modes | WUXGA |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121UTPEP |
| Maximum Operating Distance | 262.47 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Output Devices Supported | 1 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
| Package Contents |
|
| Product Name | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 3.90" |
| Receiver Height | 1" |
| Receiver Weight (Approximate) | 9.28 oz |
| Receiver Width | 5.40" |
| TAA Compliant | Yes |
| Transmitter Depth | 3.90" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 9.28 oz |
| Transmitter Width | 5.40" |
| Twisted Pair Cable Standard | Category 5e |
| VGA In | Yes |
| VGA Out | Yes |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.7500 |
| UPC | 065030835398 |
| MPN | ST121UTPEP |
